HM-630

Horizontal Machining Center
Milling
inquiry
inquiry

Specification

Travel
X travel

1000 mm

Y travel 850 mm
Z travel 950 mm
Spindle center to table surface 100~950 mm
Spindle nose to table surface

150~1100 mm

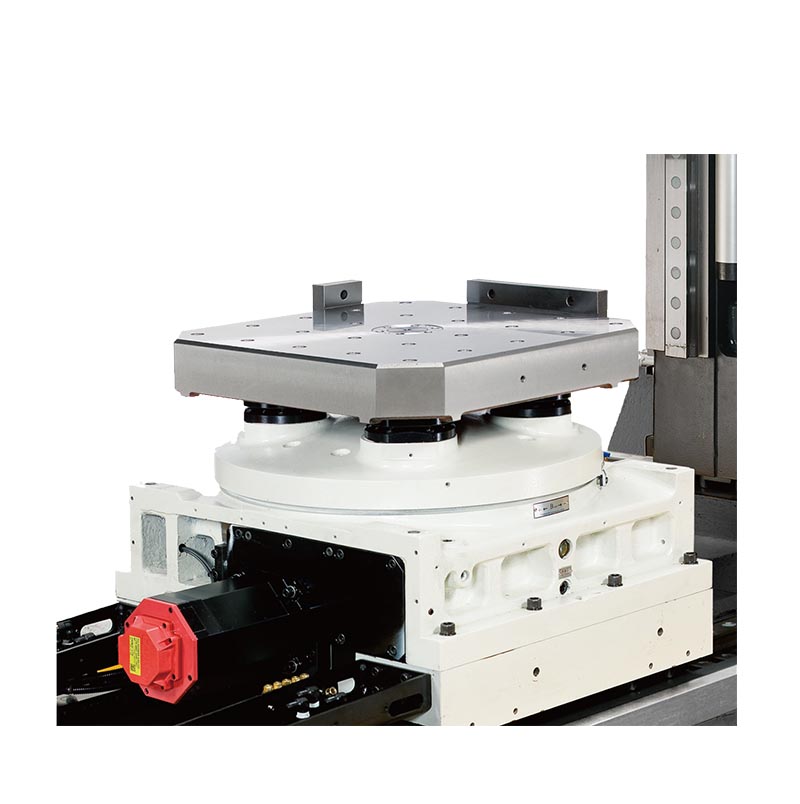

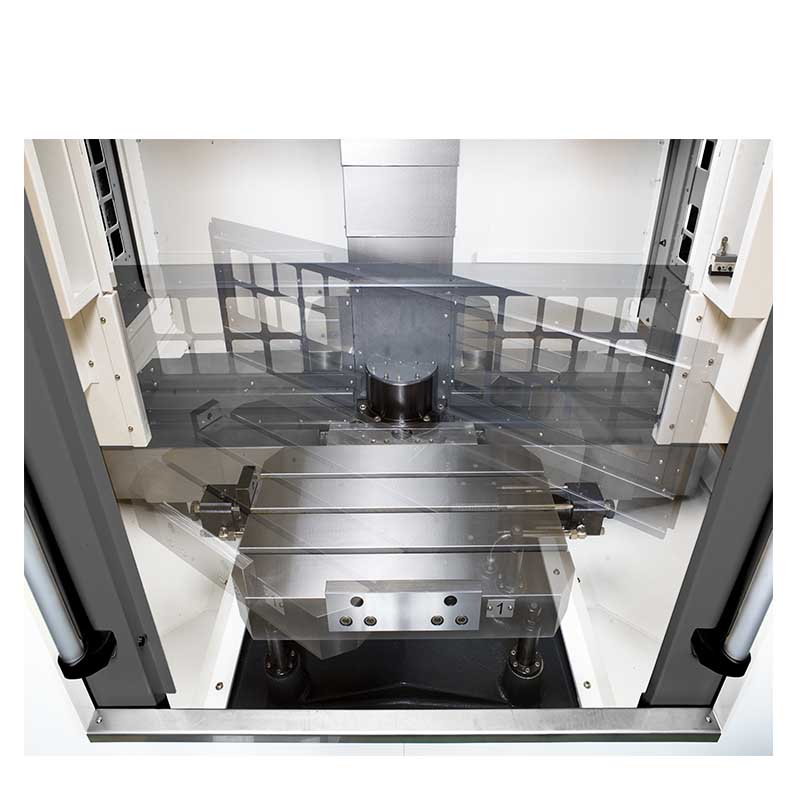

Table
Table surface to floor 1300 mm
Table size

630×630 mm

T-slot/Bolt Spec.

24-M16×P2.0

Table Load Capacity 1200 kgs
Index precision 1°  (opt. 0.001°/5°)
Spindle
Spindle Taper BT50
Method of Spindle DDS
Spindle diameter Φ100 mm
Spindle Speed

6000 rpm

Feedrate
Spindle moter(cont/30 min)

15/18.5/22/26 kw

3-axes cutting feedrate 1-6000
3-axes rapid feedrate 24 (30 opt.)

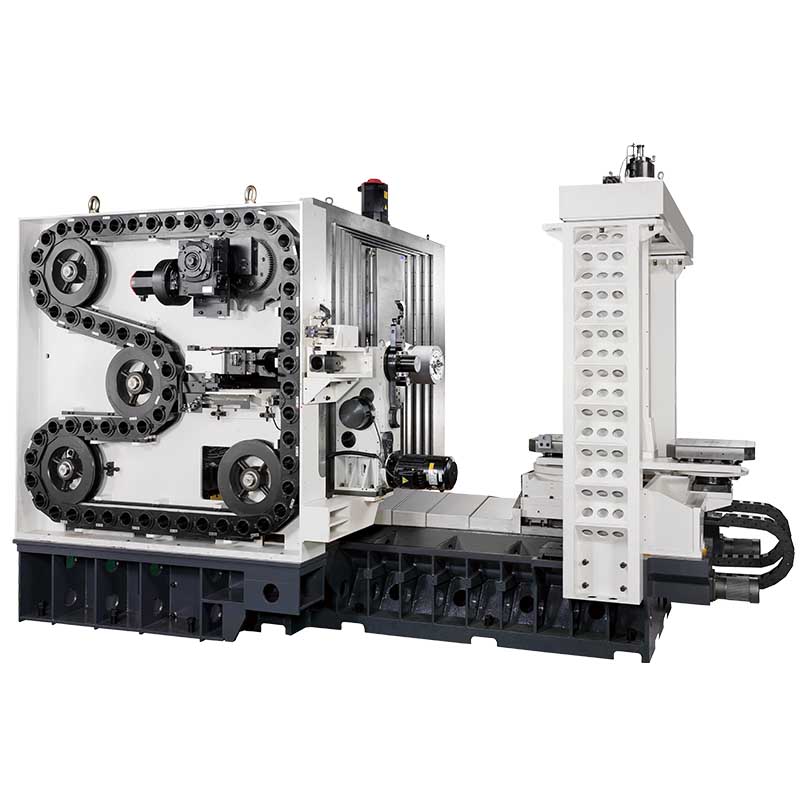

ATC
Tool selec 40 (60 opt.)
Other
Floor space (L×W×H) 6664×4175×3632
Machine weight (N.W/G.W) 20000 kgs
