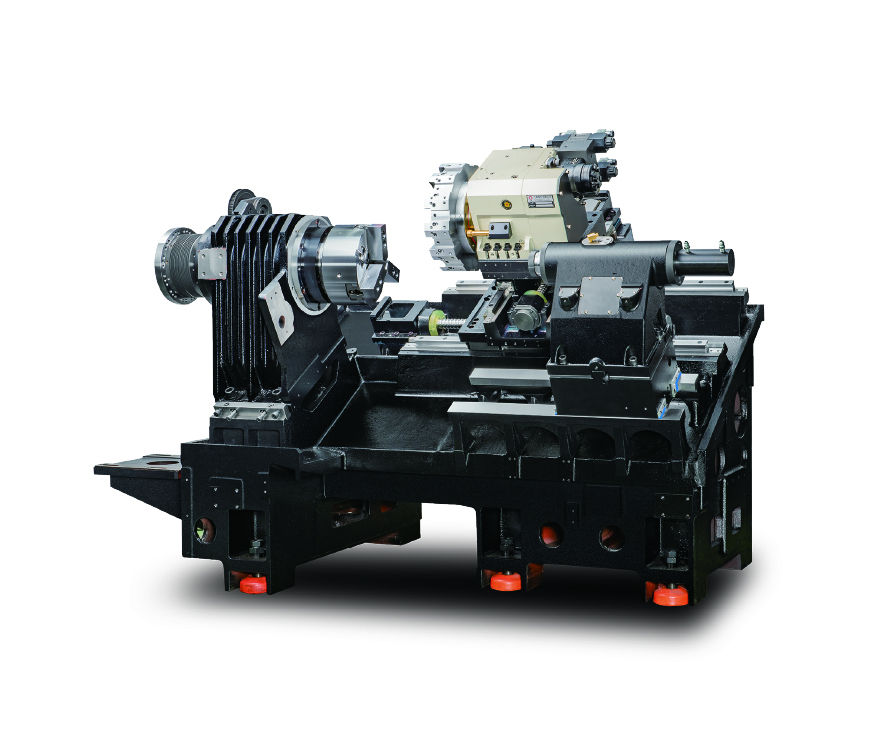

| MACHINE MODEL | SBL-8 | SBL-8M |
|---|---|---|
| Capacity | ||
| Max. Swing over bed | Ø650 mm | |
| Max. Swing over saddle | Ø450 mm | |
| Max.Turning diameter | 450 mm | 420 mm |
| Max. Working Length | 600/1000 mm | 600/1000 mm |
| Spindle | ||
| Spindle nose type | A2-8 | |
| Max. Spindle speed | 3500 rpm | |
| Front bearing I.D of spindle | Ø130 mm | |
| Spindle bore | Ø92.2 mm | |
| Max. Bar capacity | Ø77 mm | |
| Chuck size | 10"/3 Jaws | |
| Axis Feed | ||
| X axis travel | 225+20 mm | |
| Z axis travel | 600/1000 mm | |
| Rapid feed- X/Z axis | 30 M/min | |
| Cutting feed rate | 10 M/min | |
| Turret | ||
| Type | Servo | Power |
| Number of tool stations | 12 pcs | |
| Tool shank size | 25 mm | VDI 40 |
| Max. Boring bar Dia. | Ø40 mm | |
| Tail Stock | ||
| Tailstock Travel | 550/950 mm | |
| Quill Dia. | Ø75 mm | |
| Quill Travel | 75 mm | |
| Taper of Center | MT4 | |
| Tailstock orientation | Manual | |
| Motor | ||
| Main spindle motor power | 11/15 Kw | |
| Feed motor | 3 Kw | |
| Power turret motor | N/A | 3.7/5.5 |
| Power requirement | 30 KVA | |
| Utility | ||
| Hydraulic tank capacity | 50 L | |
| Coolant tank | 200 L | |
| Lubrication tank | 2 L | |
| Air source | 0.6 Mpa | |
Note: Specifications are subject to change without further notice.
