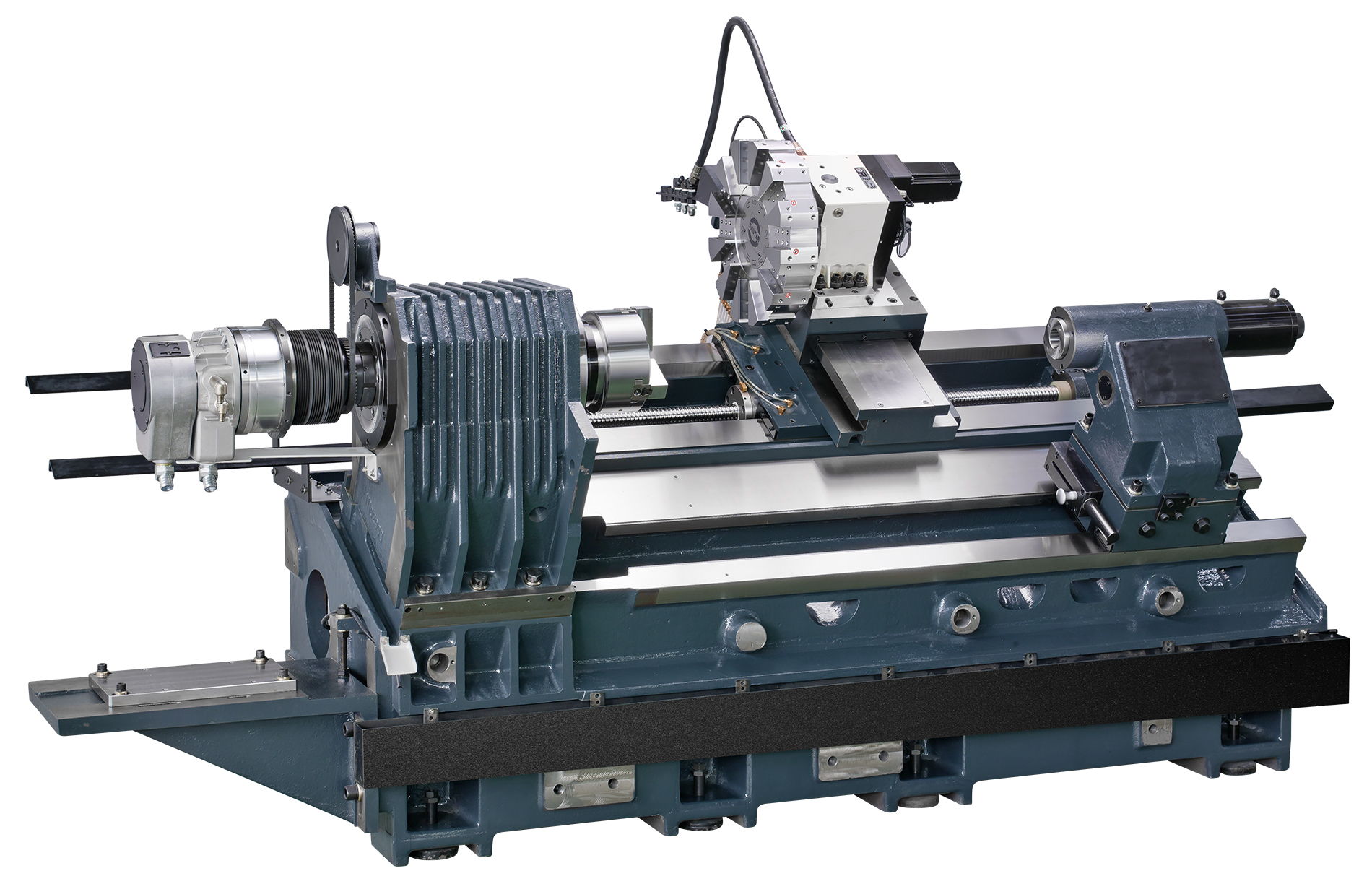

| MACHINE MODEL | SBH-8 | SBH-8M |
|---|---|---|
| Capacity | ||
| Max. Swing over bed | Ø600 mm | |
| Max. Swing over saddle | Ø400 mm | |
| Max.Turning diameter | Ø410 mm |
VDI40: Ø305 mm (Opt. BM55: 410mm) |
| Max. Working Length | 750/1000 |
VDI40: 750/1000 mm (Opt. BM55: 700/950 mm |
| Distance between centers | 620/870/1120 mm | |
| Spindle | ||
| Spindle nose type | A2-8 | |
| Max. Spindle speed | 3500 rpm | |
| Front bearing I.D of spindle | Ø130 mm | |
| Spindle bore | Ø92.2 mm | |
| Max. Bar capacity | Ø78 mm | |
| Chuck size | 10"/3 Jaws | |
| Axis Feed | ||
| X axis travel | 205+25 mm | |
| Z axis travel | 550/800/1050 mm | |
| Rapid feed- X/Z axis | 20(x)/24(z) m/min | |
| Cutting feed rate | 1-1000 mm/min | |
| Dia. of B.S (X/Z axis) | X: Ø32 Z:Ø40 | |

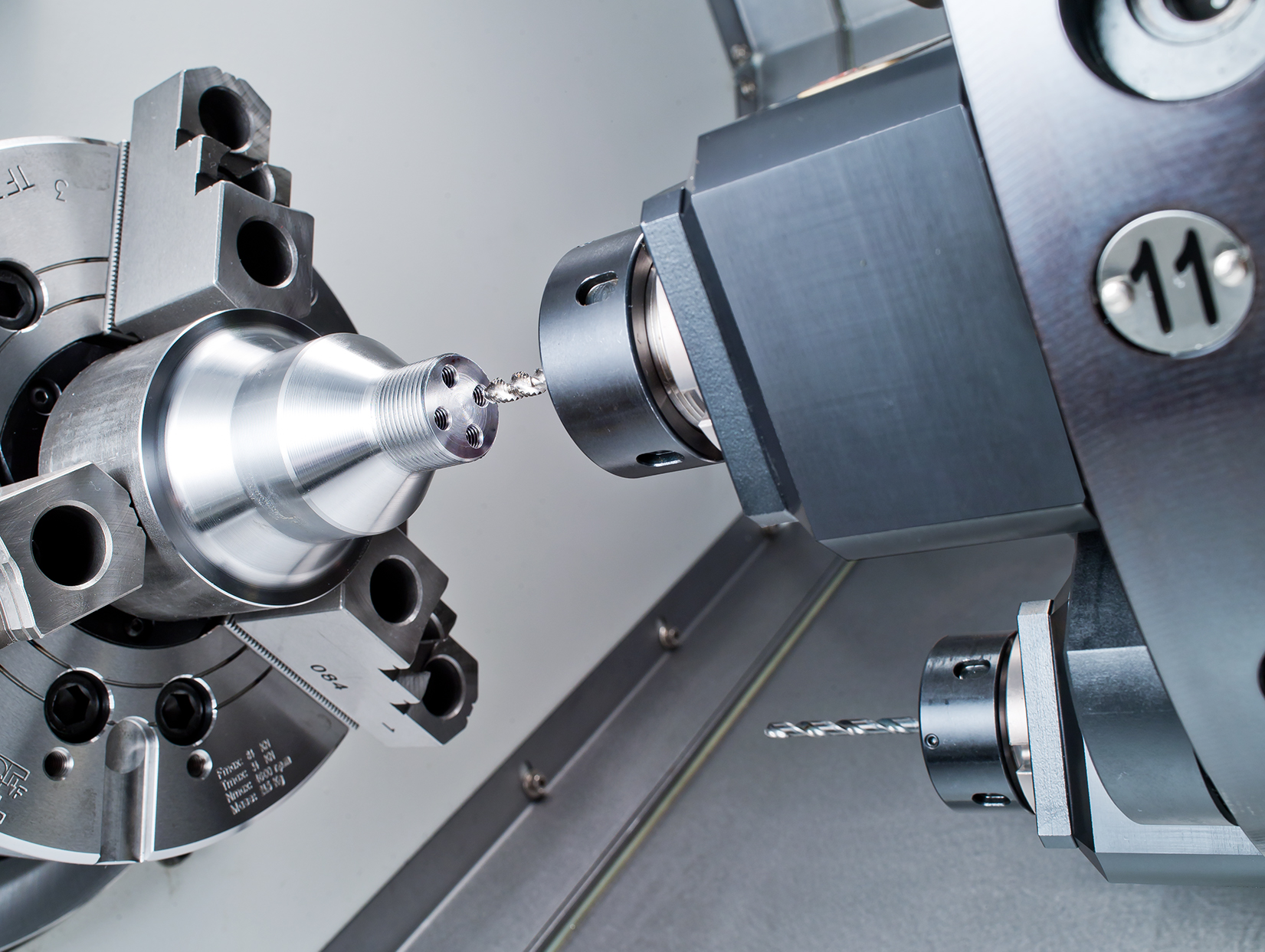

| Turret | ||
| Type | Servo | Power |
| Number of tool stations | 12 pcs | |
| Tool shank size | 25x25 | VDI 40 |
| Max. Boring bar Dia. | Ø40 mm | |
| Tail Stock | ||
| Tailstock Travel | 550/800/1050 mm | |
| Quill Dia. | Ø90 mm | |
| Quill Travel | 102 mm | |
| Taper of Center | MT5 | |
| Tailstock orientation | Manual | |
| Motor | ||
| Main spindle motor power | 15/18.5 Kw | |
| Feed motor | 3/3 Kw | |
| Power turret motor | 3.7/5.5 Kw | |
| Lubrication Pump | 70 W | |
| Hydraulic oil pump | 3 HP | |
| Coolant pump | 0.75 Kw | |
| Chip conveyor | 0.2 Kw | |
| Power requirement | 35 KVA | |
| Utility | ||
| Hydraulic tank capacity | 50 L | |
| Coolant tank | 120/140/160 L | |
| Lubrication tank | 2 L | |
| Air source | 6 kg/cm2 | |
Note: Specifications are subject to change without further notice.
