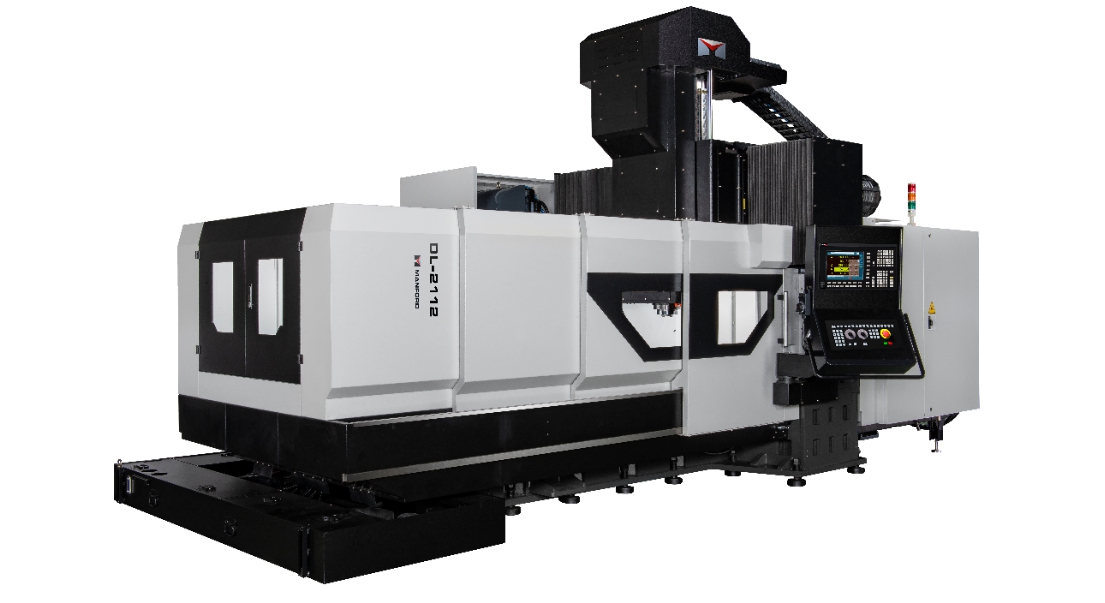

DL-1512/2112/3112/4112

Double Column Machining Center

Production series

inquiry

Specification

MACHINE MODEL	DL-1512	DL-2112	DL-3112	DL-4112
XYZ LINEAR GUIDE WAYS	Roller type
DISTANCE BETWEEN TWO COLUMNS	1400 mm (55.1")
X TRAVEL	1500 mm (59")	2100 mm (82.7")	3100mm	4100mm
Y TRAVEL	1200 mm (47.2")
Z TRAVEL	800 mm (31.5")
Spindle Nose to Table Surface	150~950 mm (5.9"~37.4")
Table size	2000x1100mm(78.7''x43.3")		3000x1100mm(118.11"x43.3")	4000x1100mm(157.4"x43.3")
T-Slot	7 x 22 x 150mm
Max Table Load	4000kgs		5000kgs	6000kgs
Spindle transmission	Direct type
Spindle taper	BT40
Spindle Speed	10000rpm (DL-1512P) 15000rpm (DL-1512M)	10000rpm(DL-2112P) 15000rpm(DL-2112M)	10000rpm(DL-3112P) 15000rpm(DL-3112M)	10000rpm(DL-4112P) 15000rpm(DL-4112M)
ATC Capacity	24 tools
Spindle Motor	11/15Kw
Rapid Feedrate	20/20/20M/min			15/20/20M/min
Machine Weight	3073 x 6500 x 3850 mm	4430 x 7500 x 3860 mm	4430 x 9670 x 3860 mm	4430 x 11850 x 3850 mm
Floor space	15,500kgs	20000kgs	24000kgs	28000kgs

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice
