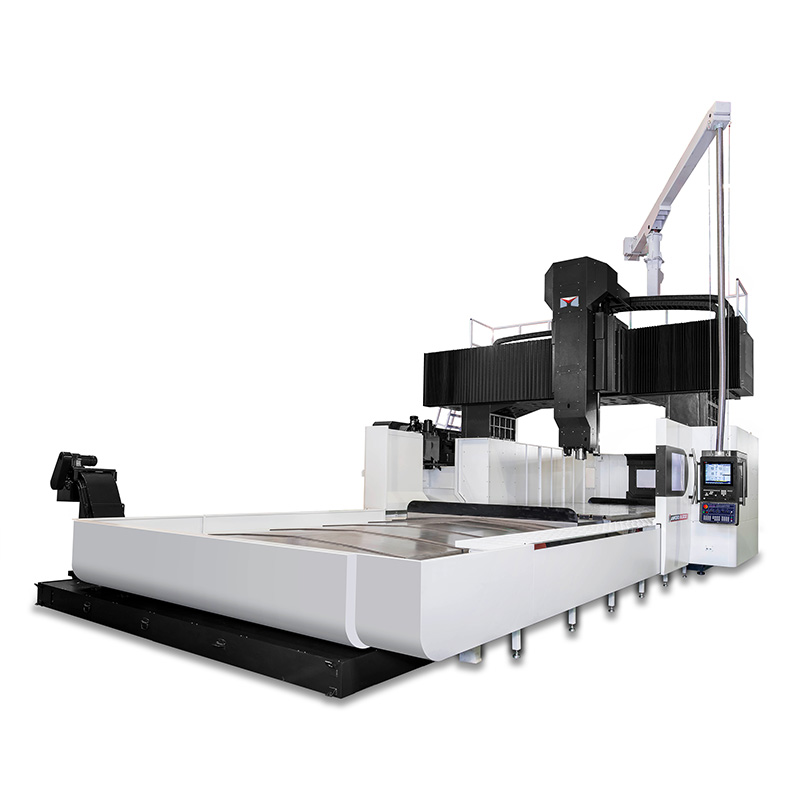

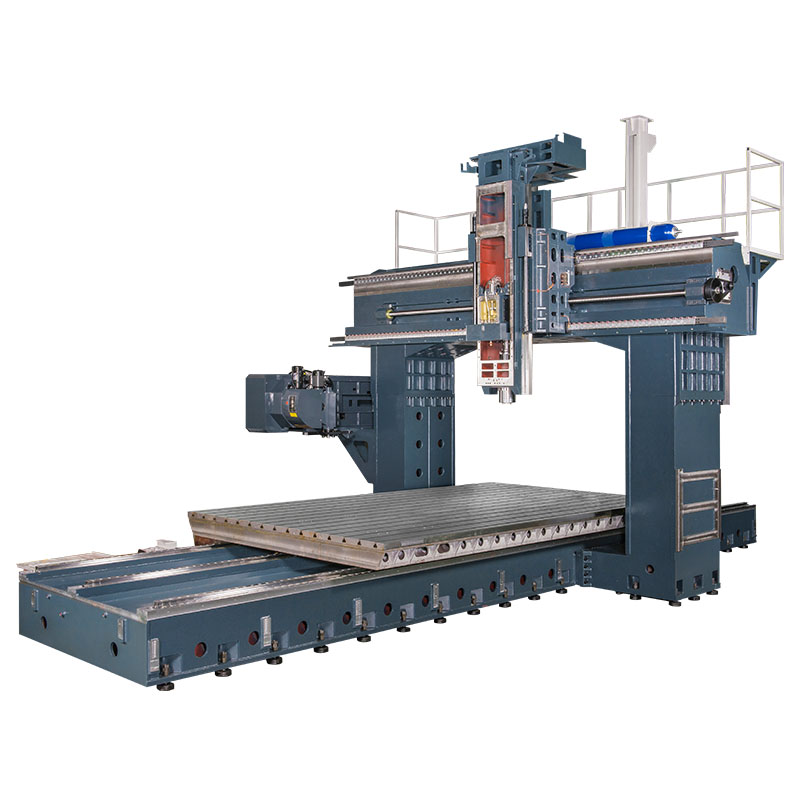

DL-5232

Double Column Machining Center
Production series
inquiry
inquiry

Specification

3 axis slide ways XY: Roller type linear guide Z: Box ways
Distance between Two Columns 3600 mm (141.7")
X travel

5200 mm (204.7")

Y travel 3200 mm (125.9")
Z travel 800 mm (31.5")
Spindle Nose to Table Surface 200~1000 mm (7.8"~39.3")

Table size

5000x3000mm (196.8"x118.1")
T-slot (Q'ty x Size x Dist) 13x28x200 mm

Table Load Capacity

18000 kgs

Spindle Transmission

Direct type

Spindle Taper

BT50
Spindle Speed

50#2 steps gear 6000 rpm

ATC Capacity Chain type 32 Tools

Spindle Motor

15/18.5 Kw

Rapid Feedrate (XYZ)

10/15/15 M/min

Machine Weight

55,000kgs

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
