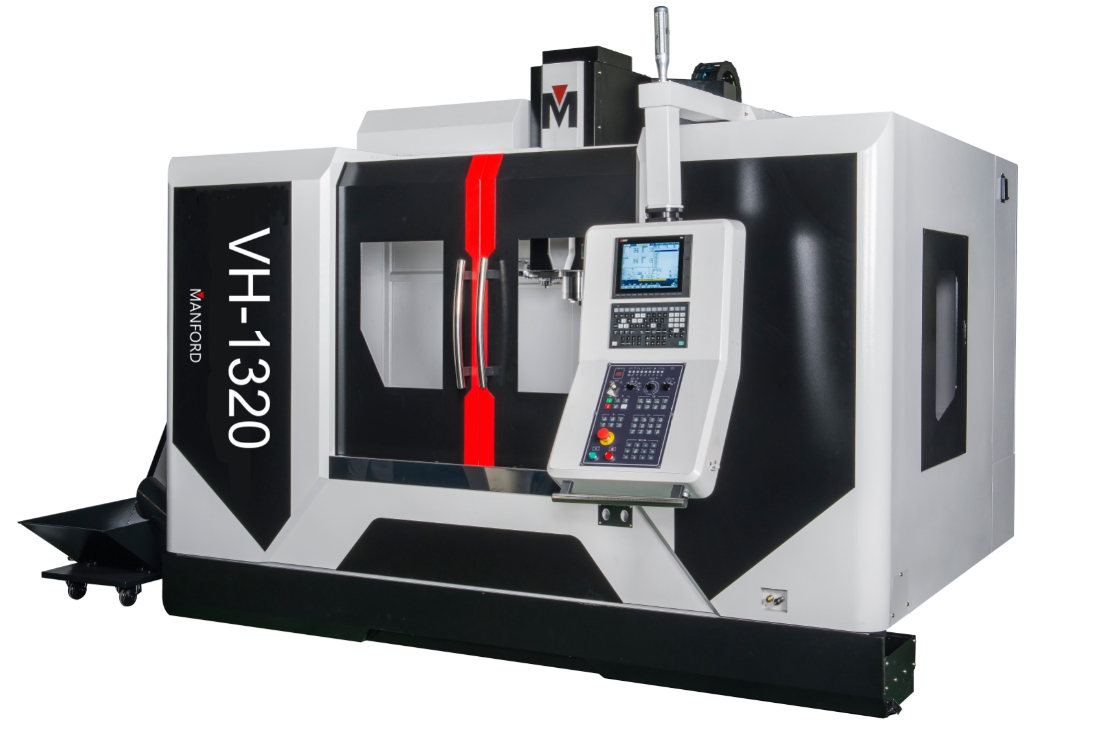

VH-1300

Vertical Machining Center

Box ways

inquiry

Specification

X travel	1300 mm (63")
Y travel	700 mm (27.6")
Z Travel	700 mm (27.6")
Spindle nose to table surface	BT40: 130~830 mm BT50: 130~800 mm
Table Size	1500 x 650 mm
T-slot (Q'ty x Size x Dist)	5x18x100 mm
Table Load Capacity	1500 kgs
Spindle Taper	BT40 / BT50
Spindle Speed	BT40: 8000rpm BT50: 6000rpm
Floor space	290 x 242 x 285 cm
Machine Weight	8300 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
