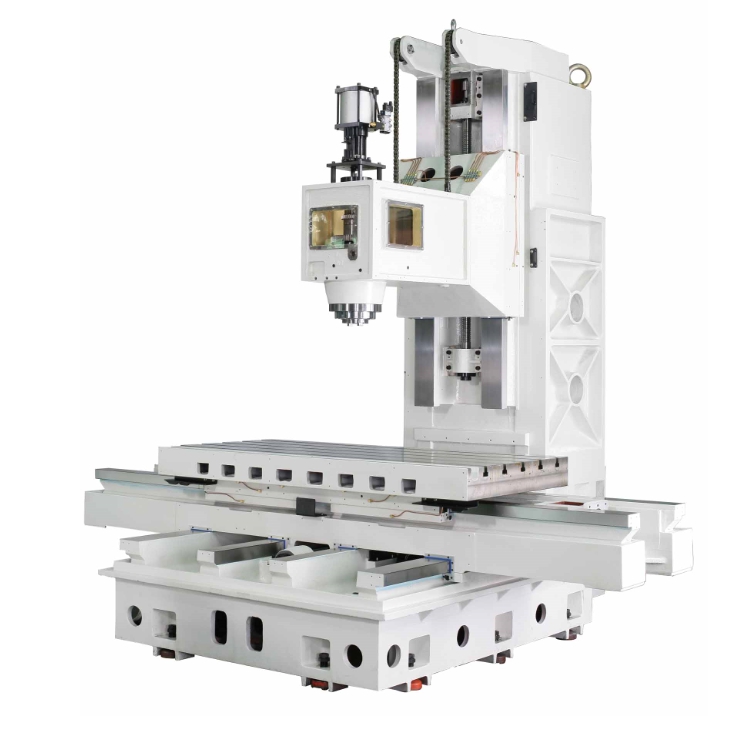

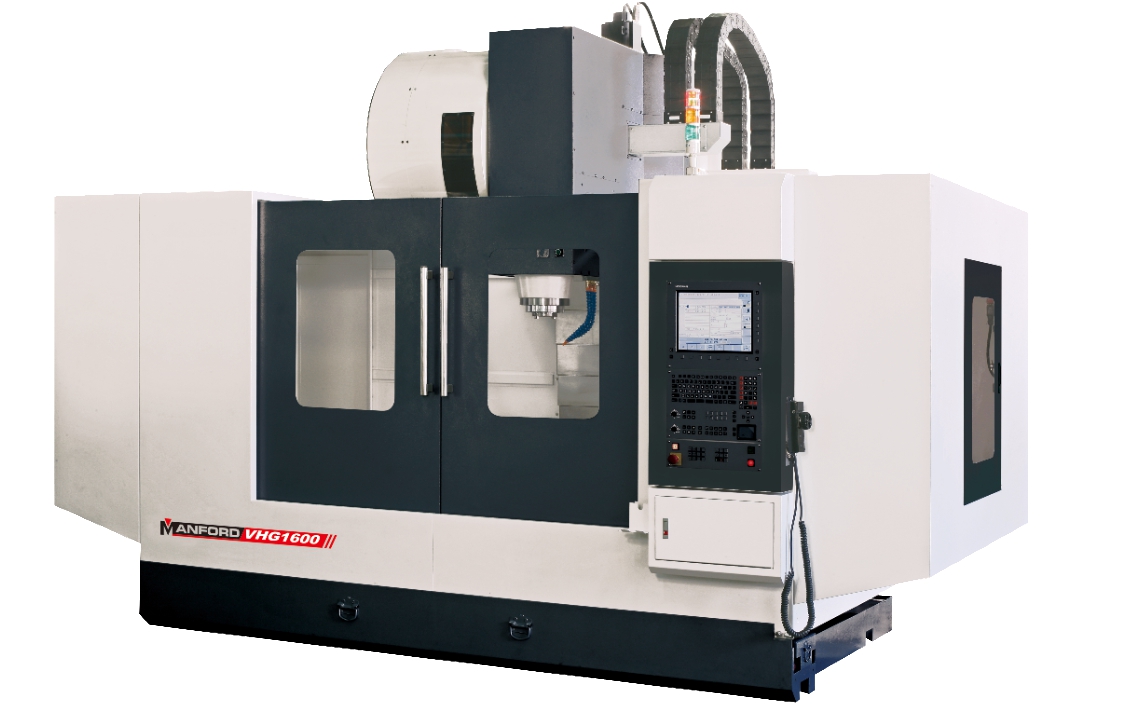

VH-1600

inquiry
inquiry

Specification

X travel 1600 mm (66.5")
Y travel 800 mm (31.5")
Z Travel 800 mm (31.5")
Spindle nose to table surface

200~1000mm

Table Size

1800 x 840 mm

T-slot (Q'ty x Size x Dist)

5x22x150 mm

Table Load Capacity

2200 kgs
Spindle Taper

BT40 / BT50

Spindle Speed

BT40: 8000rpm

BT50: 6000rpm

Floor space 4590 x 3250 x 3310 mm
Machine Weight 14500 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm
