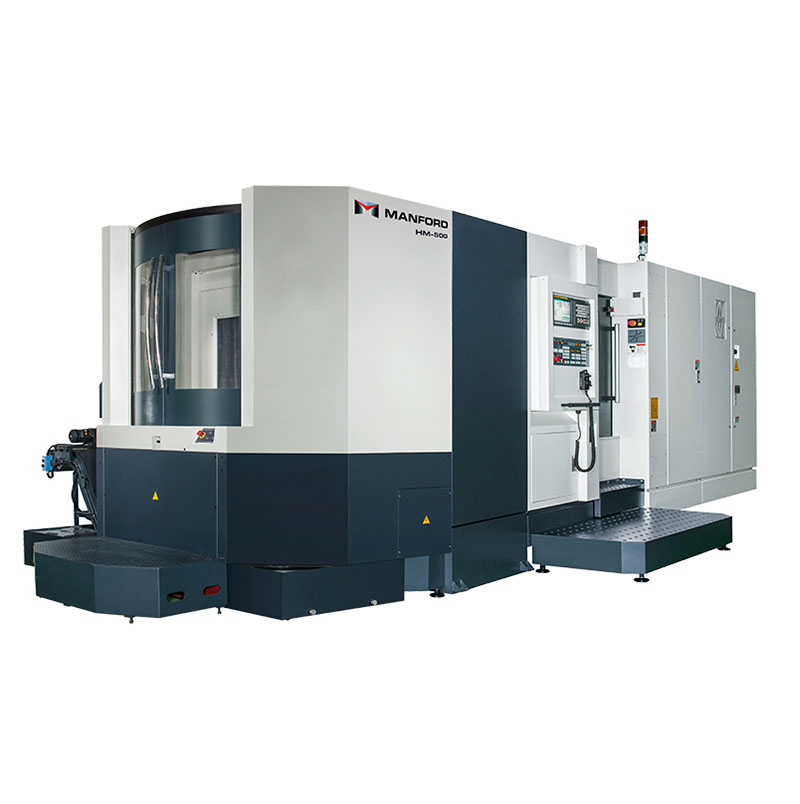

HM-500

Horizontal Machining Center
APC
inquiry
inquiry

Specification

Travel
X travel

800 mm

Y travel 725 mm
Z travel 725 mm
Spindle center to table surface 50~775 mm
Spindle nose to table surface

150~875 mm

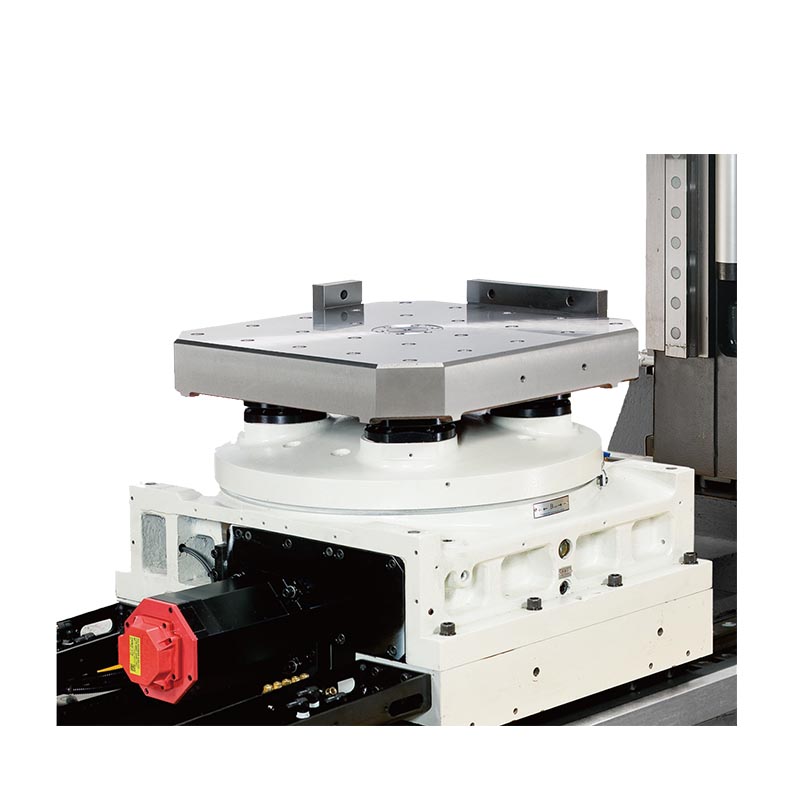

Table
Table surface to floor 1100 mm
Table size

500×500 mm

T-slot/Bolt Spec.

24-M16×P1.5

Table Load Capacity 500 kgs
Index precision 1°  (opt. 0.001°/5°)
Spindle
Spindle Taper BT40
Spindle Speed

10,000rpm

Feedrate
Spindle moter(cont/30 min)

15/18.5 kw

3-axes cutting feedrate 1-10000
3-axes rapid feedrate 30 (36 opt.)
3-axes mins setting unit 0.001mm
ATC
Tools 40 (60 opt.)

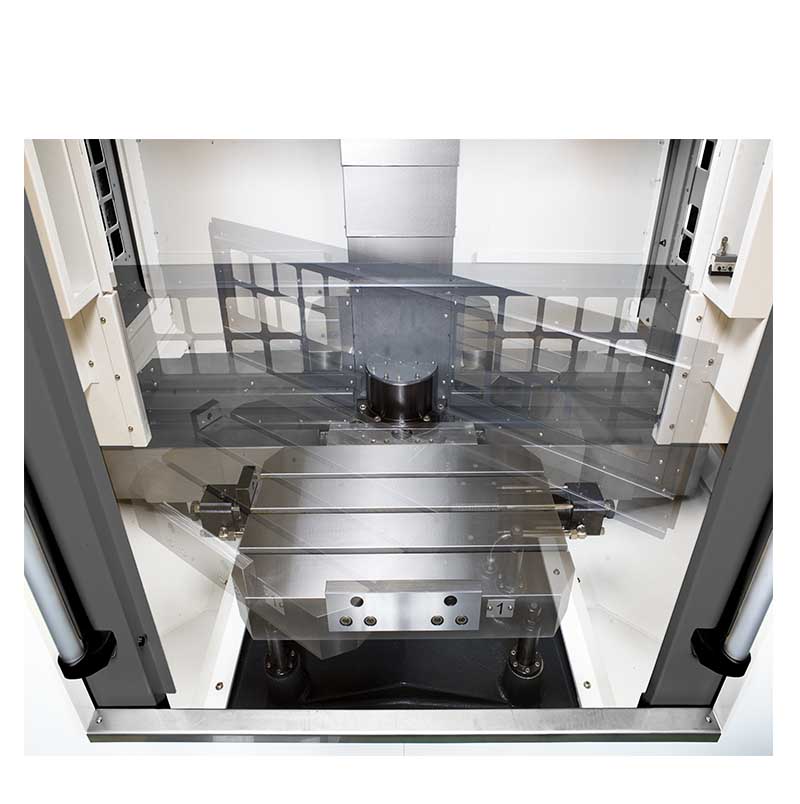

APC
Number of pallets 2 pcs
Method of pallet change Rotary type
Pallet change time 8 sec
Other
Floor space (L×W×H) 4835×3227×2957
Machine weight (N.W/G.W) 13500/16500 kg

Note: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine.  Specifications are subject to change without notice.
