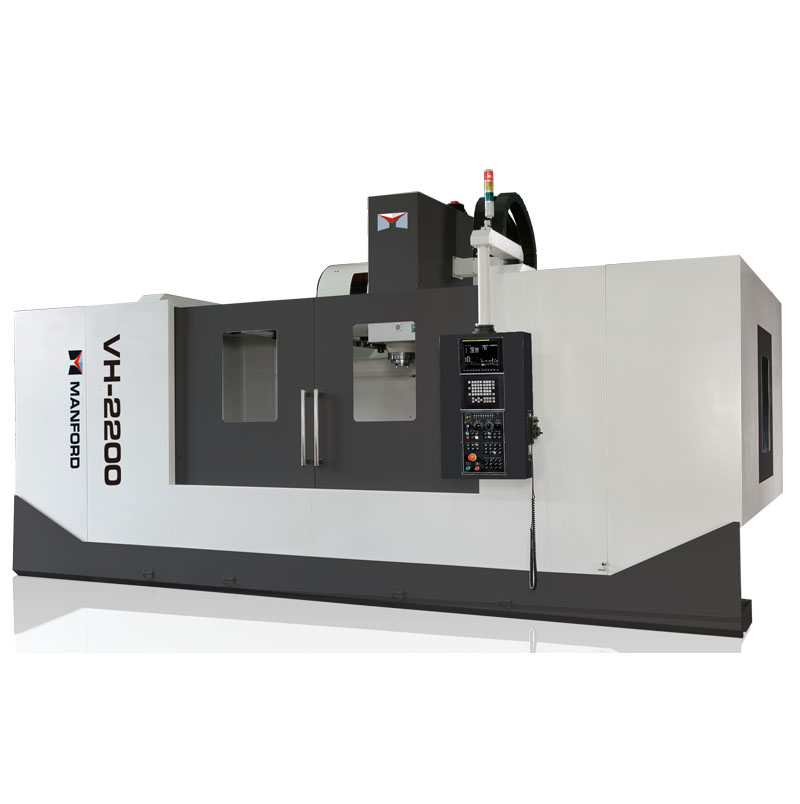

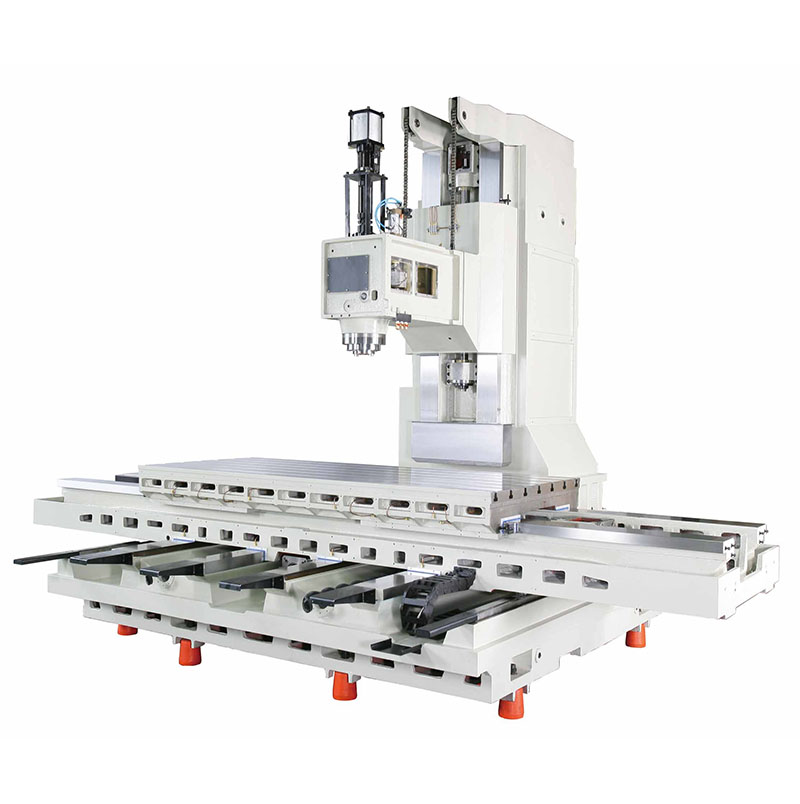

VH-2200

Vertical Machining Center

Box ways

inquiry

Specification

X travel	2090 mm (82.3'')
Y travel	1000 mm (39.3'')
Z Travel	800 mm (31.5")
Spindle nose to table surface	250~1050 mm
Table Size	2400 x 1000 mm
T-slot (Q'ty x Size x Dist)	7x22x150 mm
Table Load Capacity	3000 kgs
Spindle Taper	BT40 / BT50
Spindle Speed	BT40: 8000rpm BT50: 6000rpm
Dimensions	6130 x 4200 x 3607 mm
Machine Weight	23500 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
