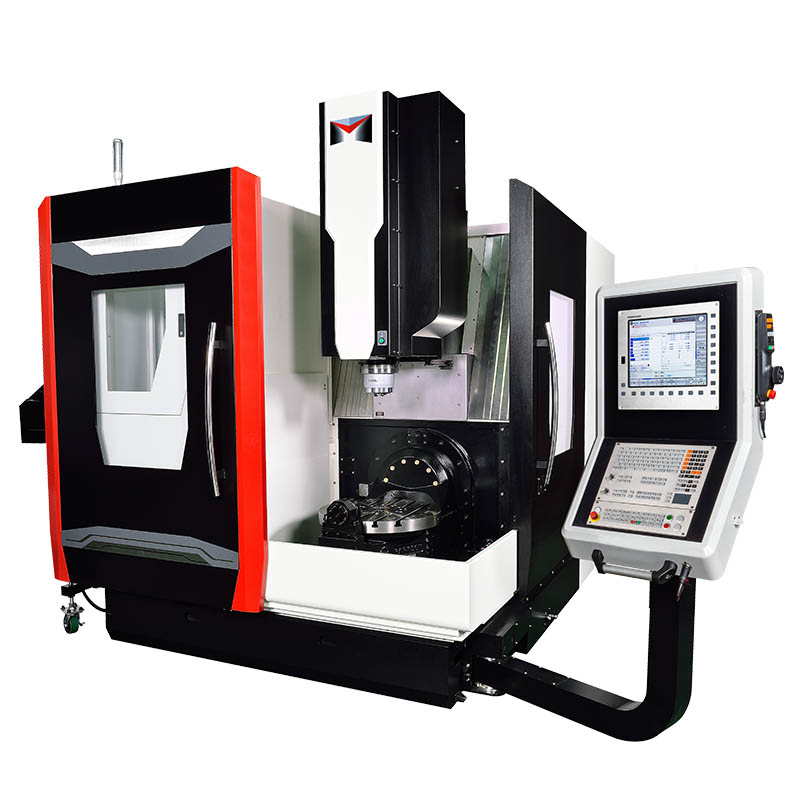

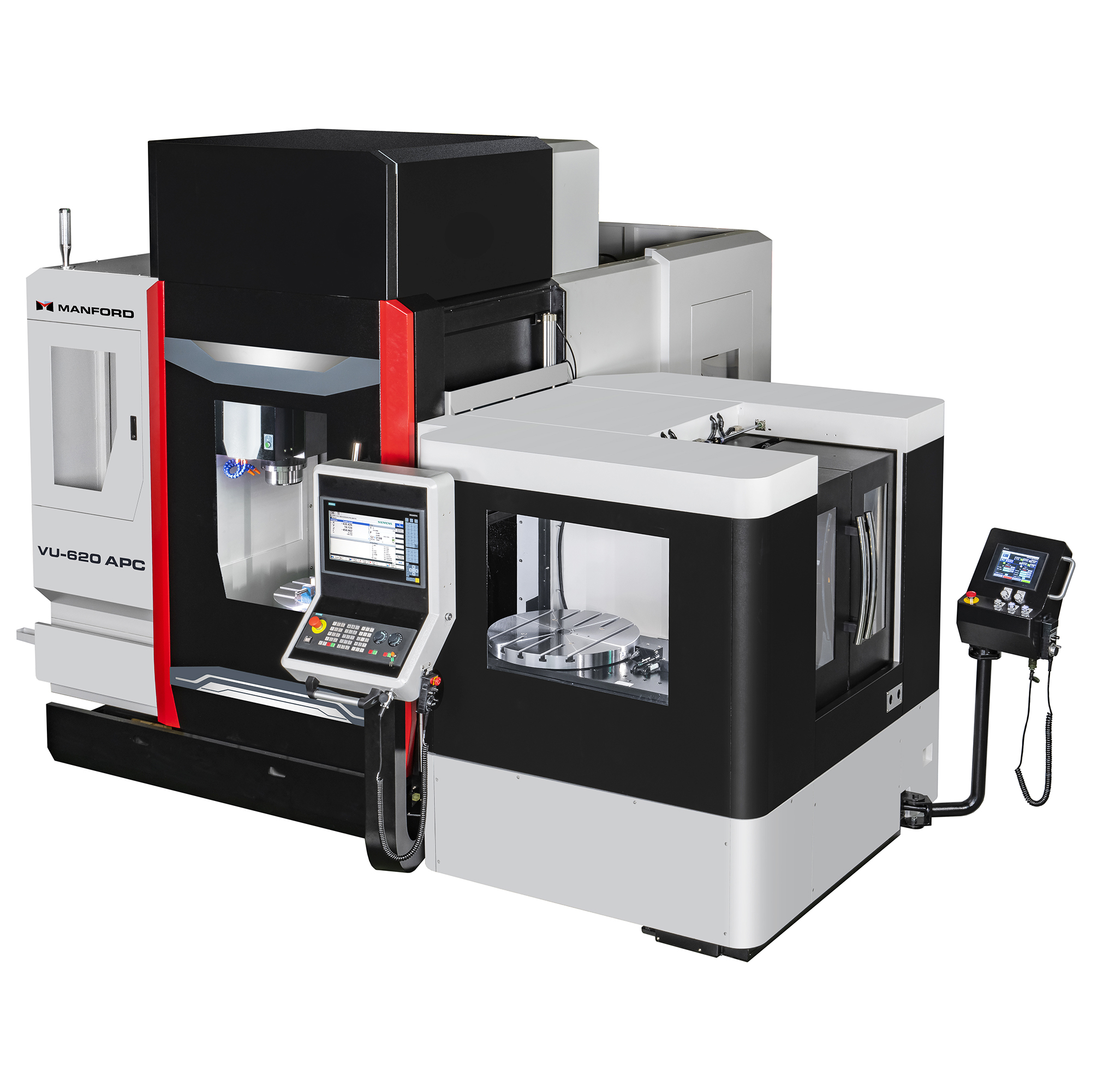

VU-620

5 Axis Machining Center

Universal Type

inquiry

Specification

CNC Control	Heidenhain TNC640
CNC Control	Siemens 840D
X travel	620 mm (24.4")
Y travel	520 mm (20.4")
Z travel	460 mm (18.1")
Spindle nose to table surface	150~610 mm (6"~24")
Table Diameter	Ø 650 mm (25.6")
T-slot (Q'ty x Size x Dist)	5x18x100 mm
Table Load Capacity	300 kgs (Horizontal)
Table Load Capacity	200 kgs (Tilting)
A Axis Tilting Range	-50˚~+110˚
C Axis rotating Range	360˚
Spindle Transmission	Direct type (opt. Build-in)
Spindle Taper	BBT40/DIN40
Spindle Speed	12000rpm (opt. 15000rpm)
Spindle Motor	*10~12.5 Kw
Rapid Feedrate (XYZ)	36/36/36 M/min
ATC Capacity	32 tools (opt. 40/60 tools)
Max Tool Diameter	Full: Ø 75 mm (3")
Max Tool Diameter	Next empty: Ø 125 mm (4.9")
Dimensions	2230x3176x3105 mm
Machine Weight	8,700 kgs

* Spinlde motor power depends on motor selection

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.

Features

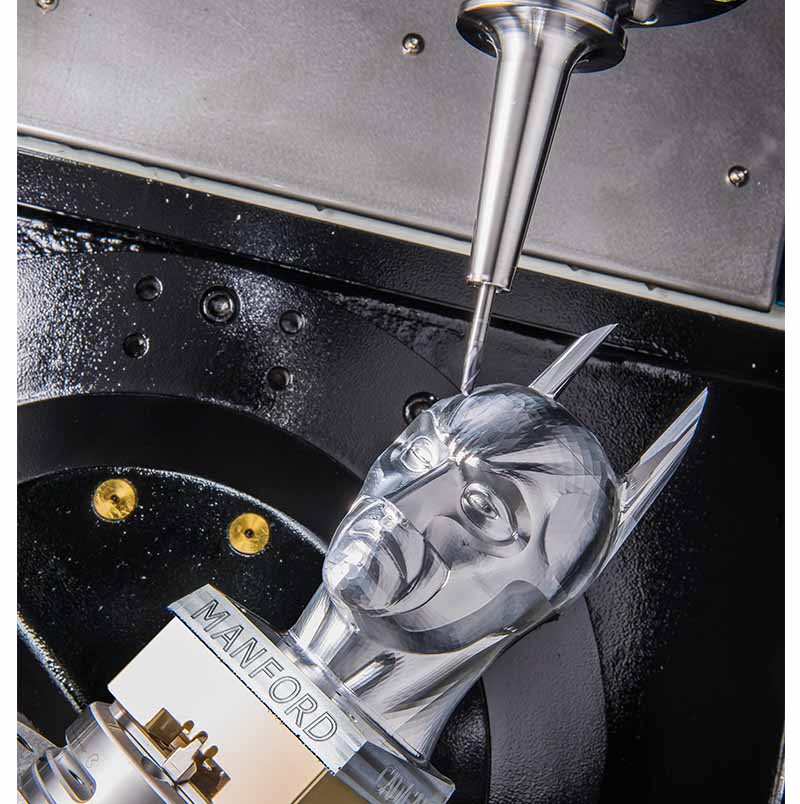

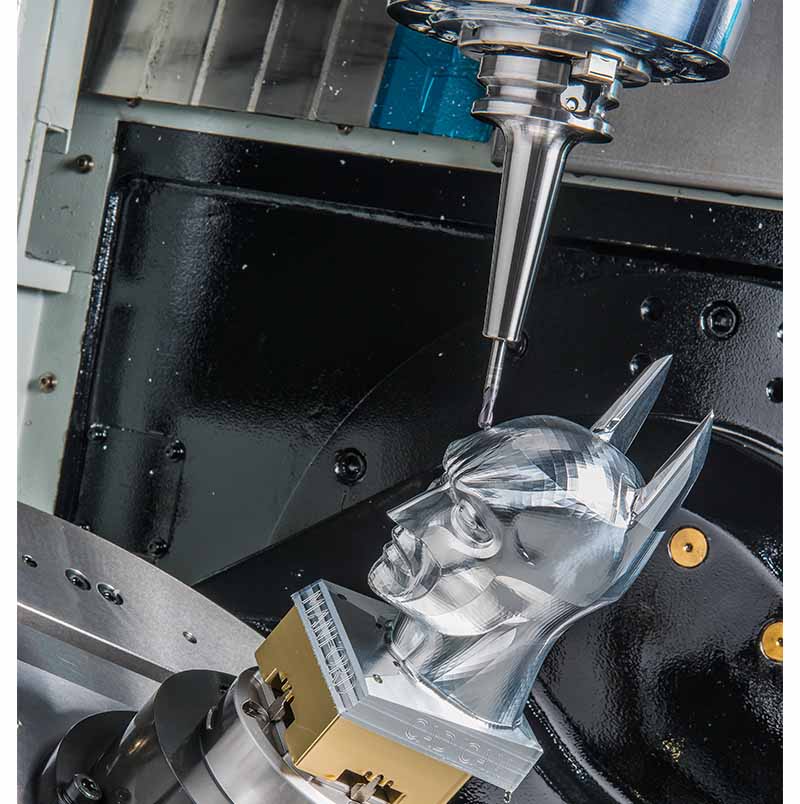

Outstanding 5-axis simultaneous machining ability can finish complicated parts in a single setup which especially suits automobile, aerospace, medical and other industries that need of high accuracy.
Double door design provides convenient loading and unloading space.
High Performance B/C-axis rotary work table. Table load capacity is up to 300 kg. B-axis swiveling range is -50˚~+110˚
BBT 40 spindle provides a firmer grip to the tools, which prevents tool vibration that affects machining accuracy.
