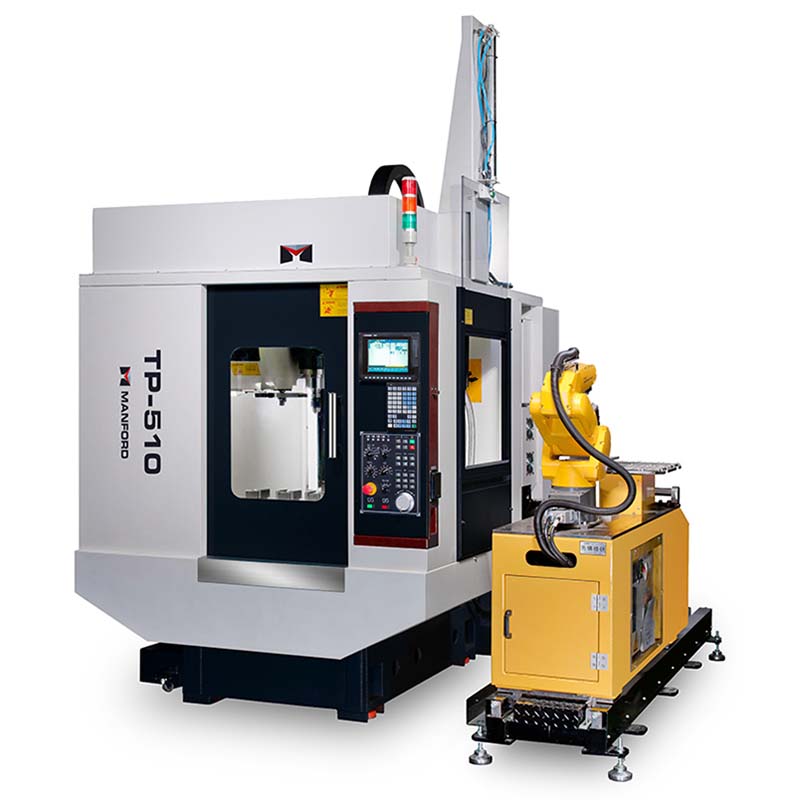

TP-510

Drill/Tap Center
Tap center
inquiry
inquiry

Specification

Travel
X travel

510 mm (27.6")

Y travel 400 mm (20")
Z travel 330 mm (16.1")
Spindle Nose to Table Surface 200~530 mm (5.9"~22")
Table

Table size

600×400 mm (31.5×20")
T-slot (Q'ty x Size x Dist ) 3×14×125 mm

Max. Table Load

250 kgs
Spindle

Spindle Transmission

Direct type

Spindle Taper

BT30
Spindle Speed 12,000rpm (opt. 15,000/20,000rpm)
ATC
ATC type Servo Motor
ATC Capacity 14 tools (opt. 21 tools)
Other
Spindle Motor 2.2/3.7 Kw

Rapid Feedrate (XYZ)

48/48/60 M/min

Floor space

219*165*262cm

Machine Weight

2,600 kgs

Note: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
