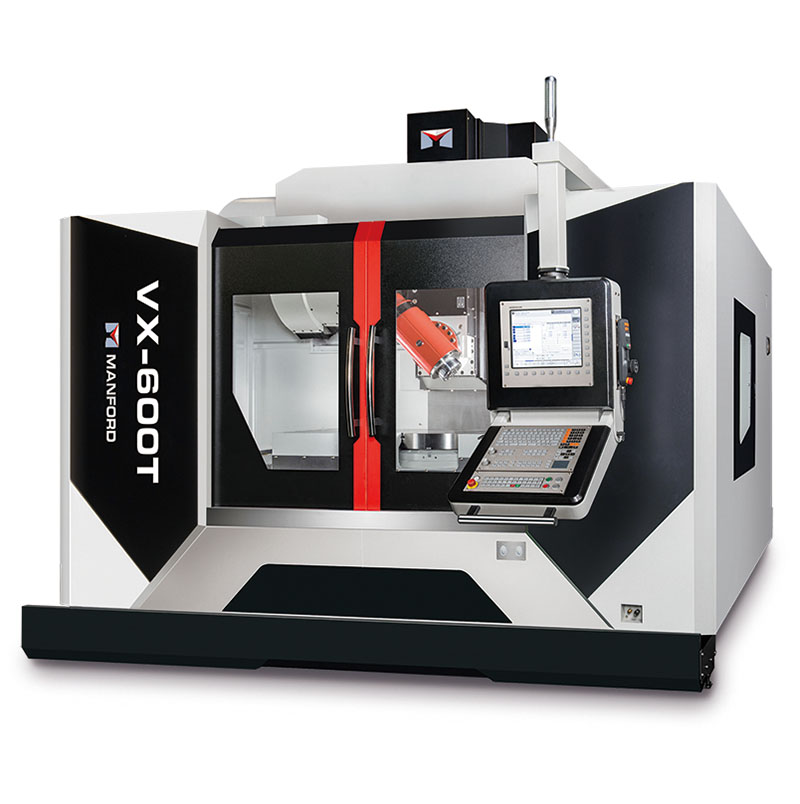

VX-600T

5 Axis Machining Center

Tilting&Turning

inquiry

Specification

CNC Control	Heidenhain TNC640
CNC Control	Siemens 840D
X travel	1,300 mm (51.2")
Y travel	700 mm (27.6")
Z travel	700 mm (27.6")
Table size	700x1,450 mm (27.6"x56.6")
Table Load Capacity	1000 kgs

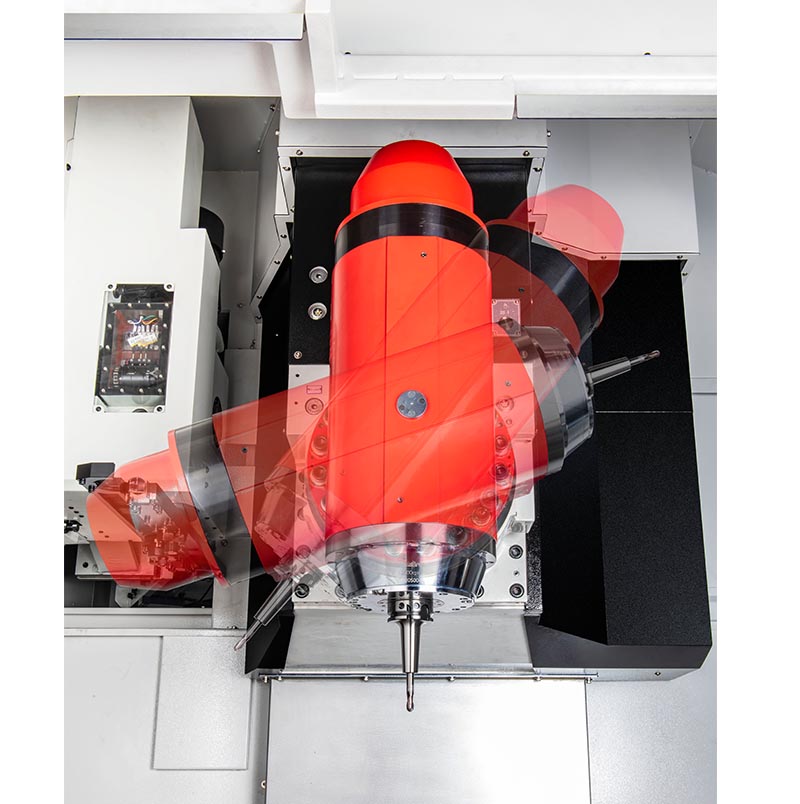

Tilting Spindle Head (B axis)
Transmission	Worm gear
Tilting Angle	-120˚~+30˚
Spindle Transmission	Build-in
Spindle Taper	BBT40/HSK-T63
Spindle Speed	15000/12000rpm
Spindle Power (S1 100% / S6 60% / S6 40%)	21~25 Kw

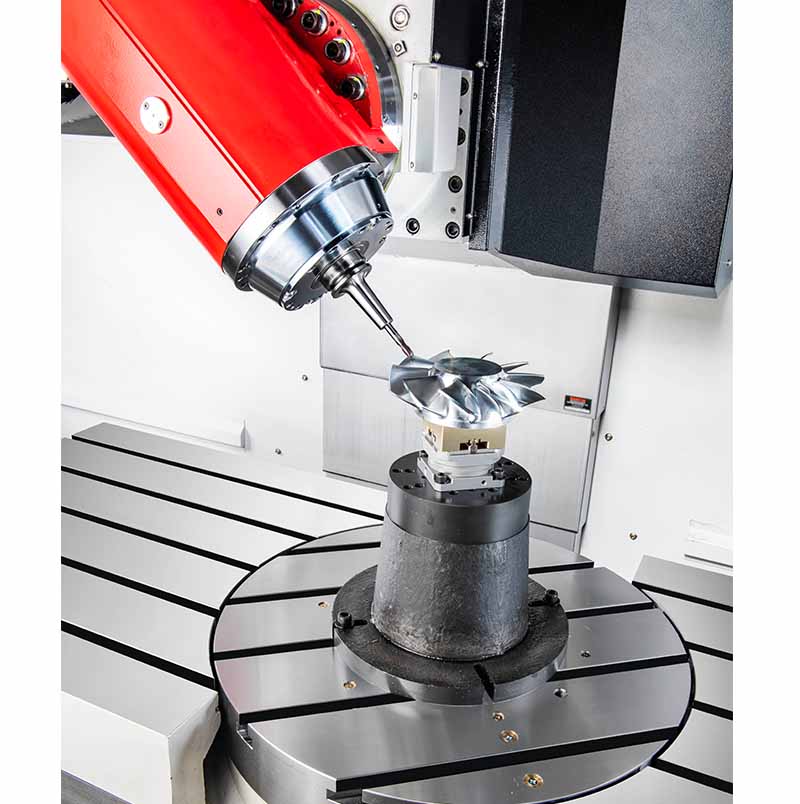

C Axis
Transmission	DD motor
Table Diameter	Ø 630 mm (23.6")
T-slot (Q'ty x Size x Dist)	18x5x125 mm
C Axis rotating Range	360˚
Max Speed	1,200 rpm
Brake torque	300/400 kgf-m
Rapid Feedrate (XYZ)	30/30/24 M/min
ATC Capacity	24 tools (opt. 40/60 tools)
Dimensions	4920x2836x3320 mm
Machine Weight	12,000kgs

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
