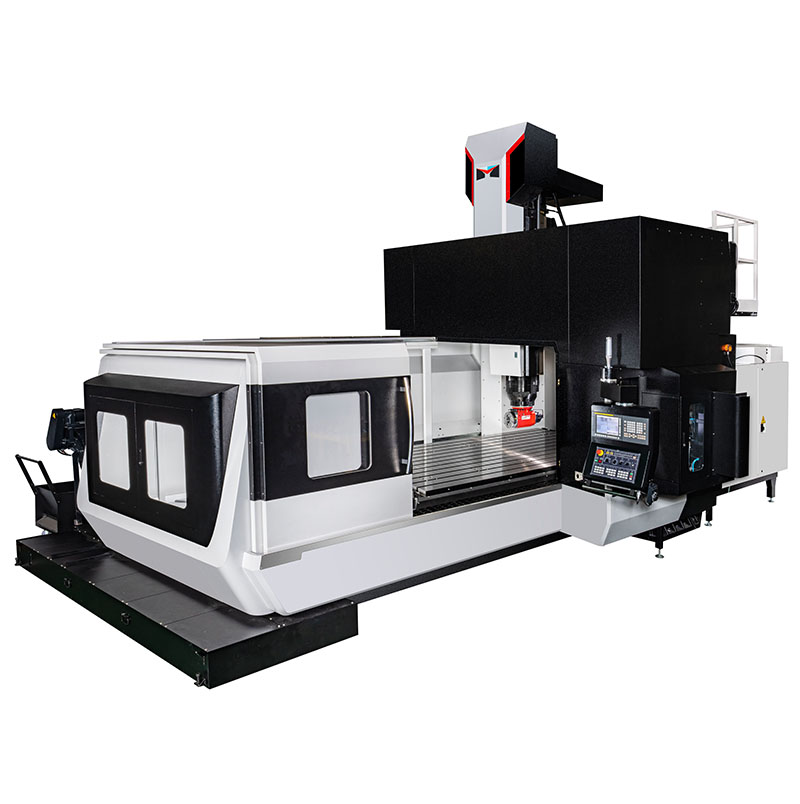

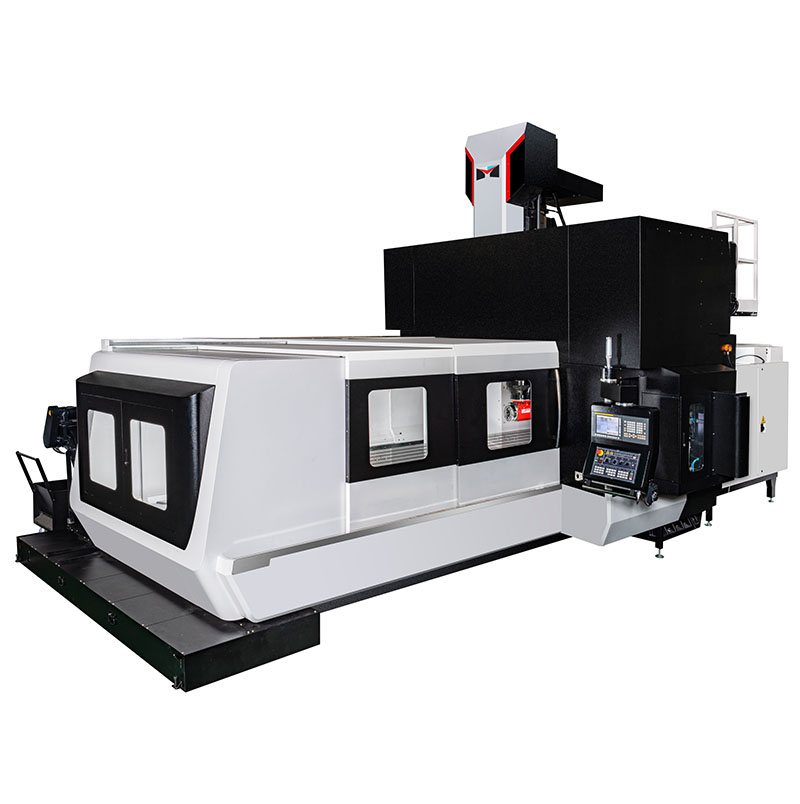

DL-3120/4120

Double Column Machining Center

Production series

inquiry

Specification

MACHINE MODEL	DL-3120	DL-4120
XYZ LINEAR GUIDE WAYS	Roller type
DISTANCE BETWEEN TWO COLUMNS	2100 mm (82.7")
X TRAVEL	3100 mm (122")	4100 mm (161.4")
Y TRAVEL	2020 mm (47.2")
Z TRAVEL	800 mm (31.5") Opt: 1020 mm (40.2")
Spindle Nose to Table Surface	150~950 mm (5.9"~37.4") Opt: 150~1170mm (5.9"~46")
Table size	3000x1800mm (118.1"x70.9")	4000x1800mm(157.5"x70.9")
T-Slot	11x22x150 mm
Max Table Load	10000 kgs	12000 kgs
Spindle transmission	Two-step Gear (opt. Direct type / Build-in spindle)
Spindle taper	BT50
Spindle Speed	6000 rpm
ATC Capacity	32 tools (opt. 40T/60T/90T)
Spindle Motor	15/18.5Kw
Rapid Feedrate	12/15/12M/min
Dimensions	4740 x 9090 x 3590 mm	4740 x 11090 x3590 mm
Machine Weight	33000kgs	38000kgs

*The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
