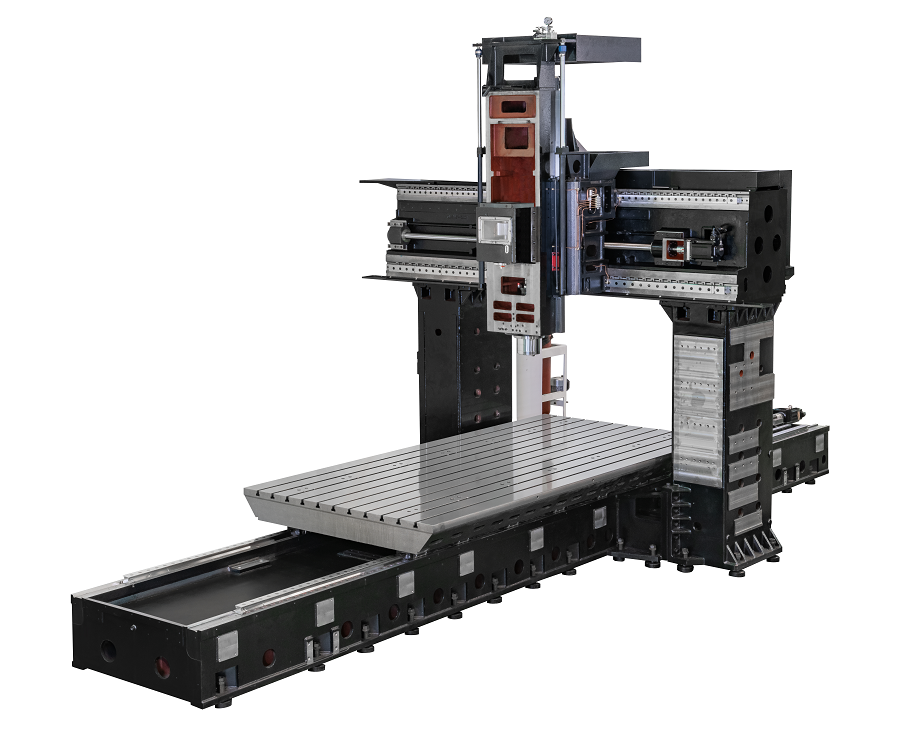

Double Column Machining Center
Production series


XYZ linear guide ways Roller type
Distance between Two Columns 2100 mm (82.7")
X travel 4100 mm (161.4")
Y travel

2020 mm (47.2")

Z travel 800 mm (31.5")  Opt: 1020 mm (40.2")
Spindle Nose to Table Surface 150~950 mm (5.9"~37.4") Opt: 150~1170mm (5.9"~46")

Table size

4000x1800mm (157.5"x70.9")
T-slot (Q'ty x Size x Dist) 11x22x150 mm

Table Load Capacity

12,000 kgs

Spindle Transmission

Two-step Gear (opt. Direct type / Build-in spindle)

Spindle Taper

Spindle Speed

6,000 rpm

ATC Capacity 32 tools (opt. 40T/60T/90T)

Spindle Motor

15/18.5 Kw

Rapid Feedrate (XYZ)

12/15/12 M/min

Floor space 474 x 1109 x 359cm

Machine Weight


The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
