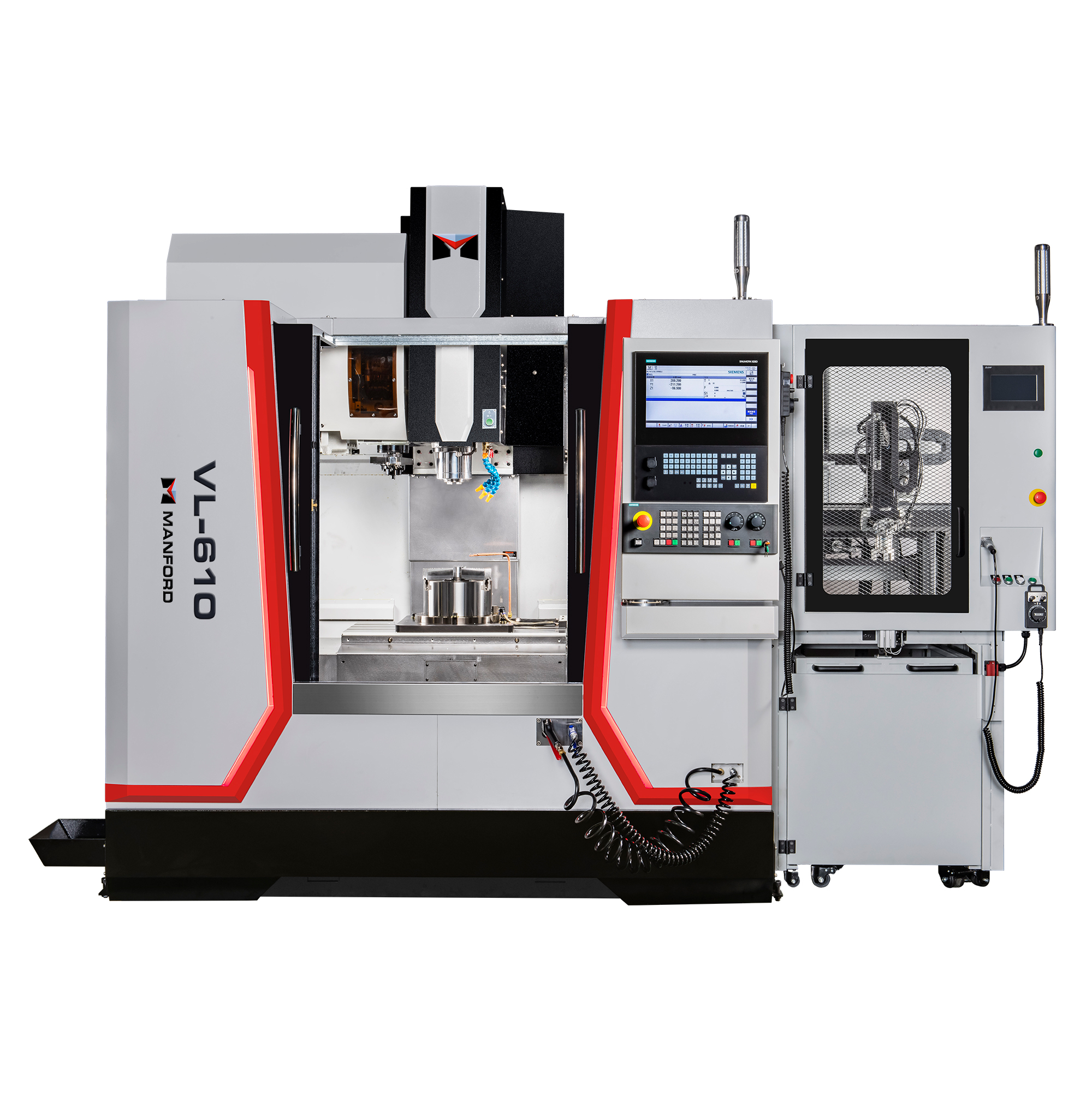

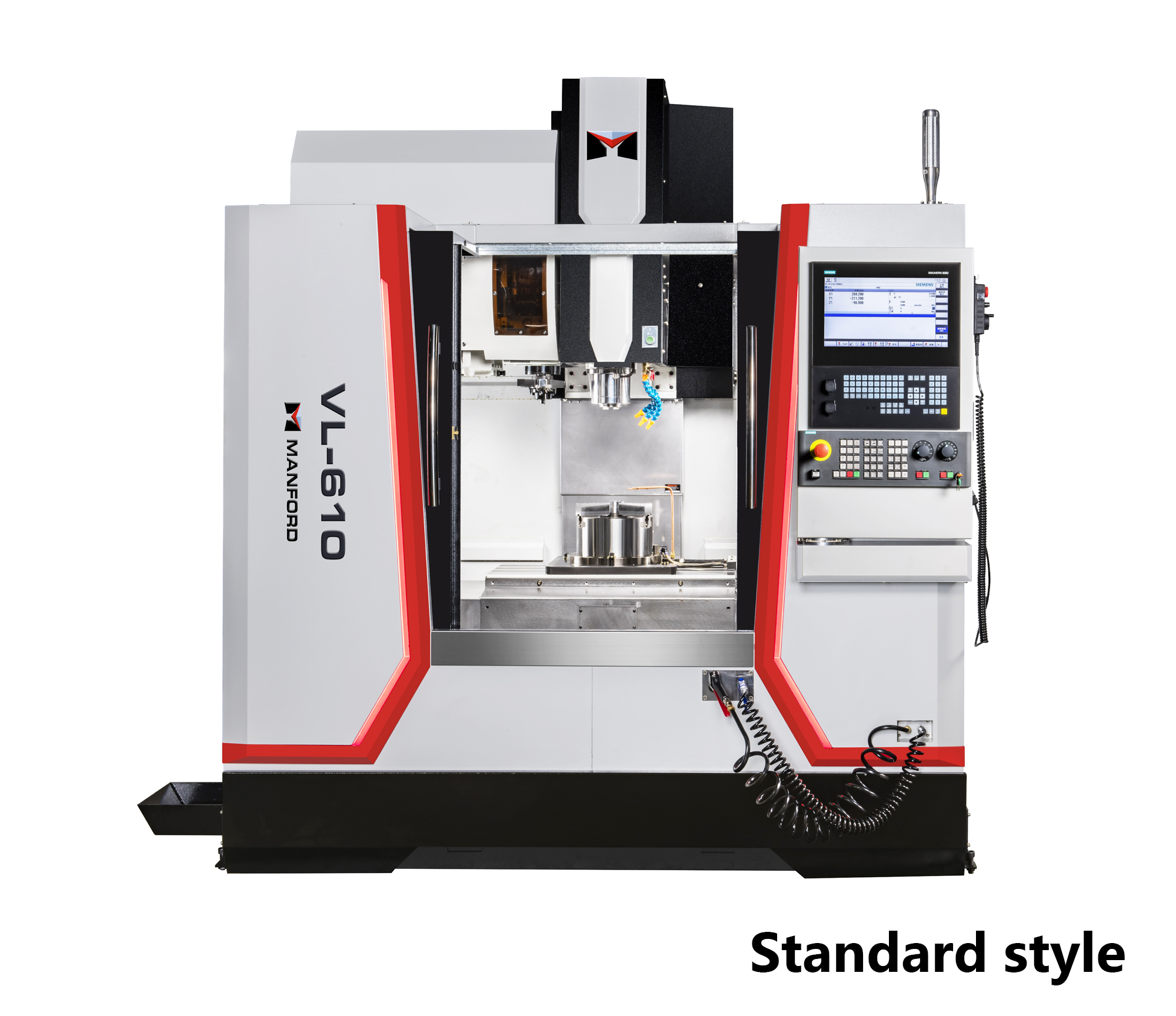

VL-610

Vertical Machining Center
Production series
inquiry
inquiry

Specification

X travel 610 mm (24")
Y travel 460 mm (18.1")
Z Travel 510 mm (20")
Spindle nose to table surface 125~635 mm (4.9''~25'')

Table Size

800x450 mm (31.5'' x 17.7'')

T-slot (Q'ty x Size x Dist)

3x18x100 mm

Table Load Capacity

500 kgs
Spindle Transmission Belt type / Direct type / Build-in
Spindle Taper

BT40

Spindle Speed

8000rpm(opt. 15000~24000rpm)

ATC Capacity 16 tools(opt. 24 tools)
CNC control Mitsubishi / Fanuc / Fagor / Siemens / Heidenhain
Spindle Motor 5.5/7.5 Kw (*)
Floor space  284 x 165 x 262 cm
Machine Weight 3800 kgs

* Spindle motor power depends on controller and spindle transmission selection.
