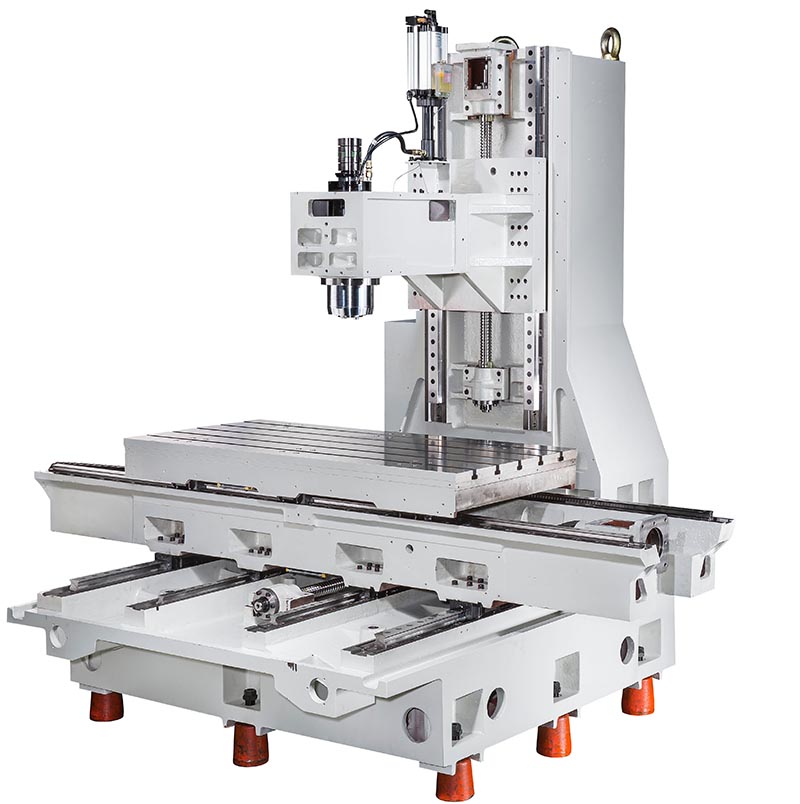

VL-1300

Vertical Machining Center
Production series
inquiry
inquiry

Specification

X travel 1300 mm (51.2")
Y travel 700 mm (27.6")
Z Travel 700 mm (27.6")
Spindle nose to table surface BT40: 130~830 mm / BT50: 130~800mm

Table Size

1450x700 mm

T-slot (Q'ty x Size x Dist)

5x18x125 mm

Table Load Capacity

1300 kgs
Spindle Taper

BT40 / BT50

Spindle Speed

BT40 8000rpm / BT50 6000rpm

Floor space 443 x 260 x 299 cm
Machine Weight 7000kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
