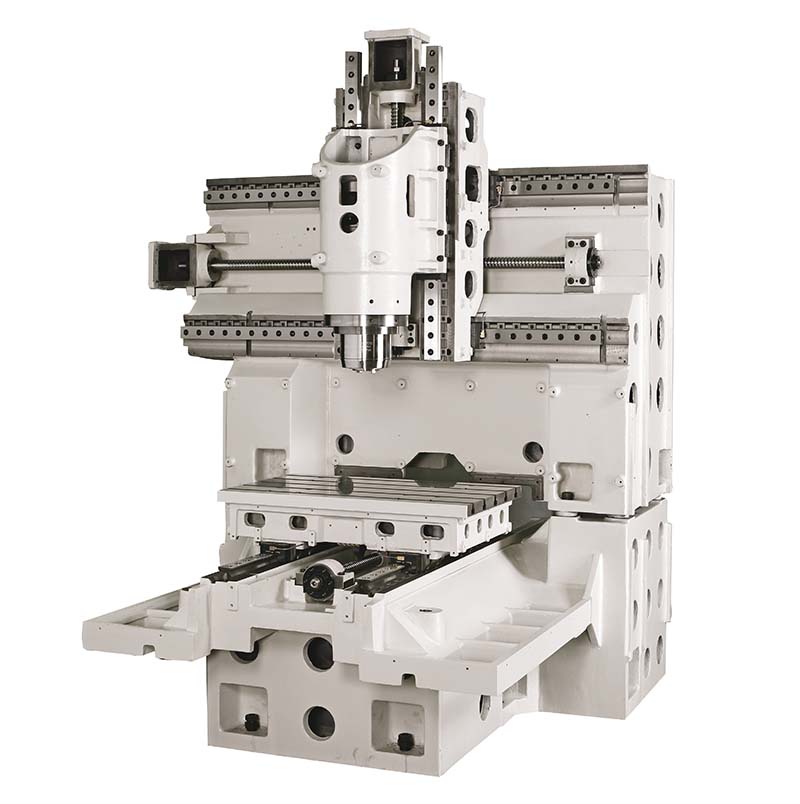

High Speed Bridge Type Machining Center
VF series


XYZ linear guide ways Roller type
X travel

700 mm (27.6")

Y travel

510 mm (20")

Z travel 410 mm (16.1")
Spindle nose to table surface 150~560 mm (5.9"~22")

Table Size

800x510 mm (31.5"x20")

T-slot (Q'ty x Size x Dist)

5x18x100 mm

Table Load Capacity

500 kgs
Spindle Transmission Direct type
Spindle Taper BT40
Spindle Speed  12000rpm (opt. 15000rpm)
ATC Capacity 16 tools
Spindle Motor 7.5/11 Kw
Rapid Feedrate (XYZ) 36/36/36 M/min
Dimensions 2630 x 2330 x 2010 mm
Machine Weight 6300 kgs

* Spinlde motor power depends on motor selection

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
