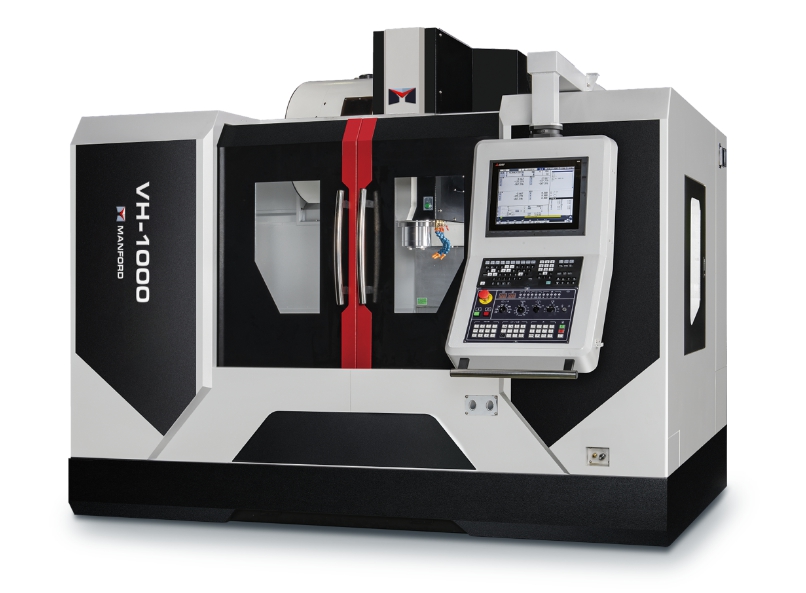

Vertical Machining Center
Box ways


X travel 1020 mm (40.2")
Y travel 510 mm (20")
Z Travel 560 mm (22")
Spindle nose to table surface 130~690 mm

Table Size

1200x500 mm

T-slot (Q'ty x Size x Dist)

5x18x100 mm

Table Load Capacity

750 kgs
Spindle Transmission Belt type / Direct type
Spindle Taper


Spindle Speed

8000rpm (opt. 15000rpm)

ATC cAPACITY 24 tools (opt. 30 tools)
CNC Control Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
Spindle Motor  7.5/11 Kw
Rapid Feedrate(XYZ) 24/24/16 M /min
Floor space 290 x 226 x 279 cm
Machine Weight 5200 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
