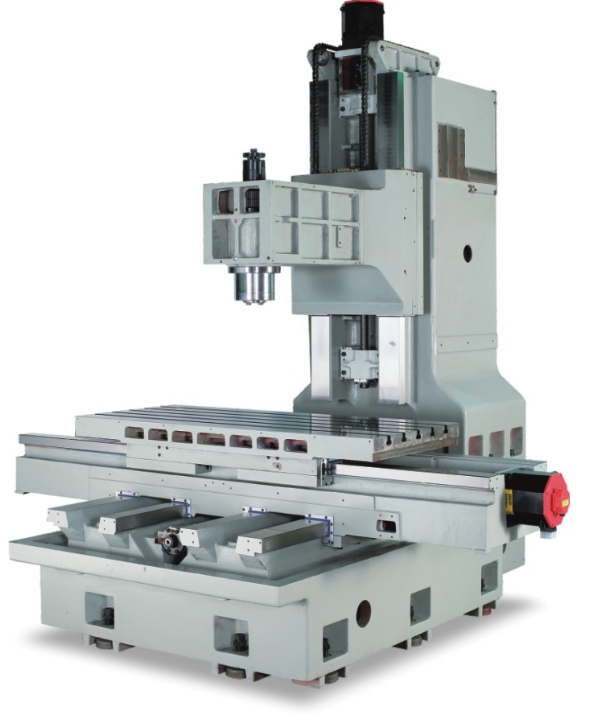

Vertical Machining Center
Box ways


X travel 1100 mm (51.2")
Y travel 700 mm (27.6")
Z Travel 700 mm (27.6")
Spindle nose to table surface

BT40: 130~830 mm

BT50: 130~800 mm

Table Size

1300 x 650 mm

T-slot (Q'ty x Size x Dist)

5x18x100 mm

Table Load Capacity

1300 kgs
Spindle Taper

BT40 / BT50

Spindle Speed

BT40: 8000rpm

BT50: 6000rpm

Floor space 290 x 242 x 285 cm
Machine Weight 7700 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
