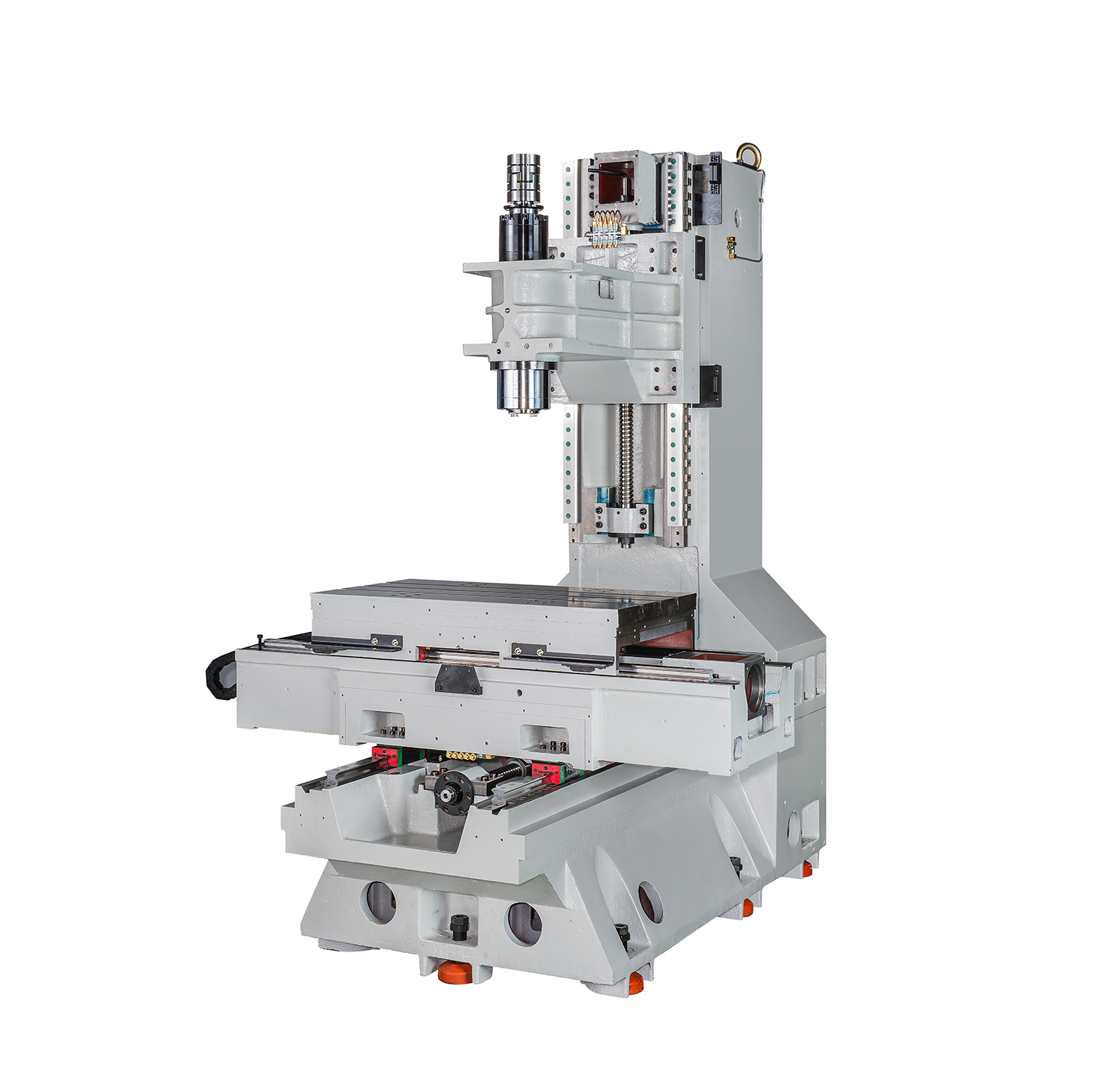

VL-550

Vertical Machining Center

Linear guide ways

inquiry

Specification

X travel	550 mm (20")
Y travel	410 mm (16.1")
Z travel	460 mm (18.1")
Spindle nose to table surface	130~590 mm
Table Size	600x320 mm
T-slot (Q'ty x Size x Dist)	3x14x100 mm
Table Load Capacity	350 kgs
Spindle Taper	BT40
Spindle Speed	8000rpm (opt. 10000~15000rpm)
Dimensions	2000 x 2305 x 3490 mm
Machine Weight	2800 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
