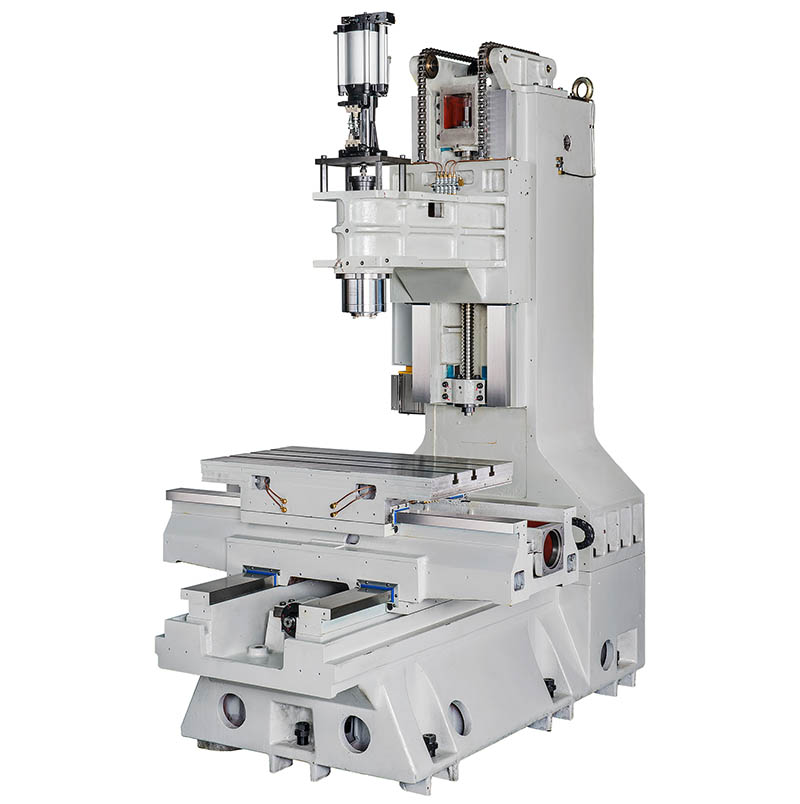

VH-610

Vertical Machining Center
Production series
inquiry
inquiry

Specification

X travel 610 mm (24")
Y travel 460 mm (18.1")
Z Travel 510 mm (20")
Spindle nose to table surface 130~640 mm

Table Size

800x450 mm

T-slot (Q'ty x Size x Dist)

3x18x100 mm

Table Load Capacity

800 kgs
Spindle Taper

BT40

Spindle Speed

8000rpm

Floor space 216 x 245 x 255 cm
Machine Weight 3800 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
