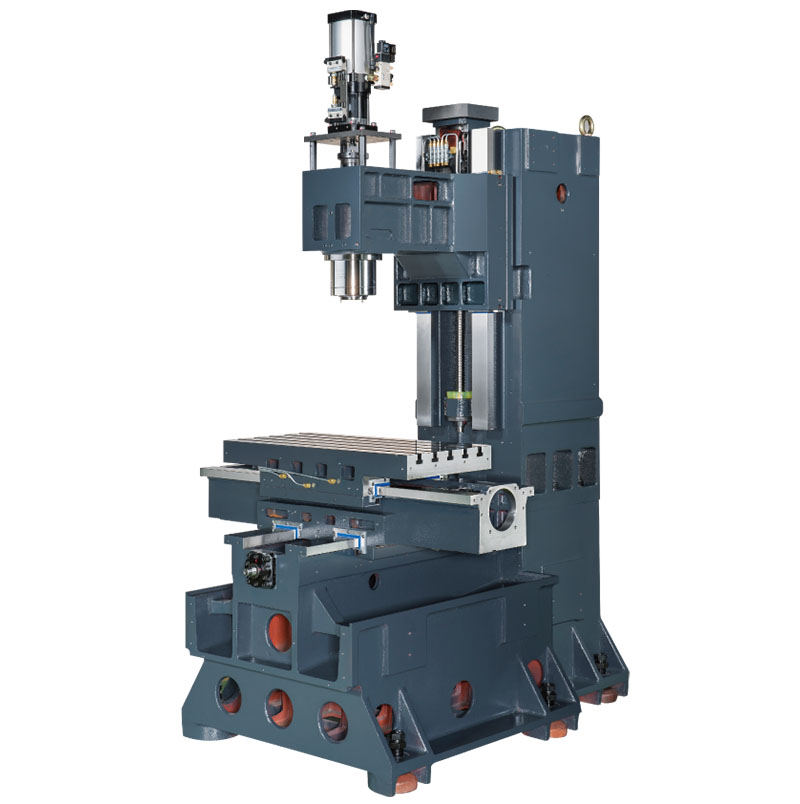

EH-610

CNC Tool Room Mill

Box way

inquiry

Specification

X travel	610 mm
Y travel	350mm
Z travel	460 mm
Spindle Nose to Table Surface	70~530 mm
Table size	710x 350mm
T-slot (Q'ty x Size x Dist )	5x 16x 63mm
Max. Table Load	350 kgs

Spindle Transmission	Direct type
Spindle Taper	BT40
Spindle Speed	8000rpm (opt. 10000~12000 rpm)
ATC Capacity	Genoa type 12 tools Arm type 24 tools

CNC control	Mitsubishi/Fanuc/Simens/Fagor
Dimensions	1960 x 1730 x 2300 mm
Machine Weight	2,600 kgs

Note1: VM-610 is the original model of EH-610.

Note2: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
