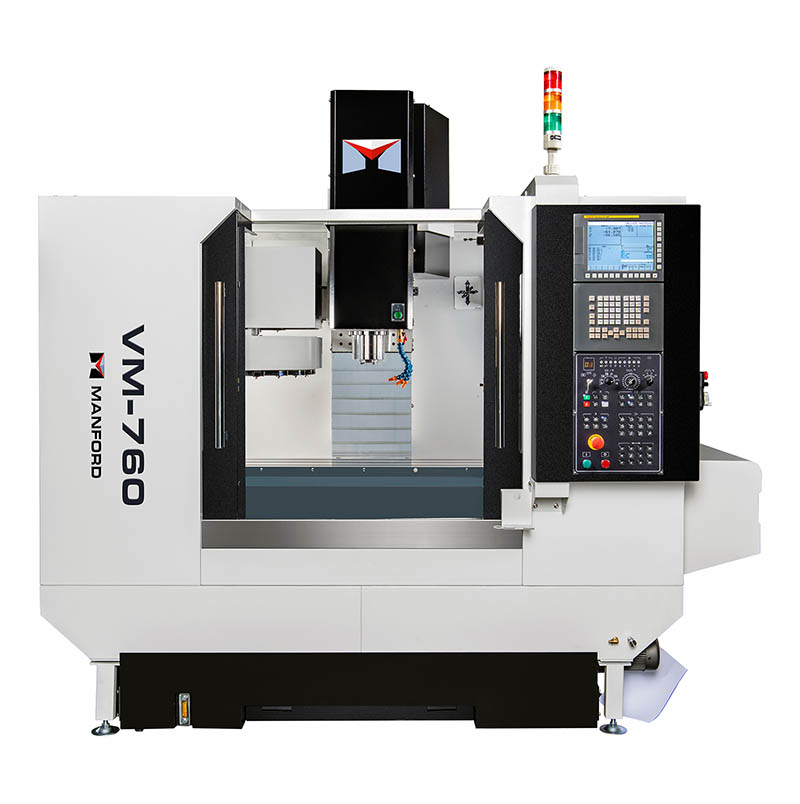

VM-760

CNC Tool Room Mill

Linear guide way

inquiry

Specification

X travel	760 mm
Y travel	400mm
Z travel	400 mm
Spindle Nose to Table Surface	102~508 mm
Table size	1,270x 305mm
T-slot (Q'ty x Size x Dist )	3x 16x 102mm
Max. Table Load	200 kgs

Spindle Transmission	Belt type
Spindle Taper	BT40
Spindle Speed	8000rpm (opt. 10000~12000 rpm)
ATC Capacity	Genoa type 12 tools

CNC control	Mitsubishi/Fanuc/Simens/Fagor
Dimensions	251021102432 mm
Machine Weight	2,500 kgs

Note: The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
