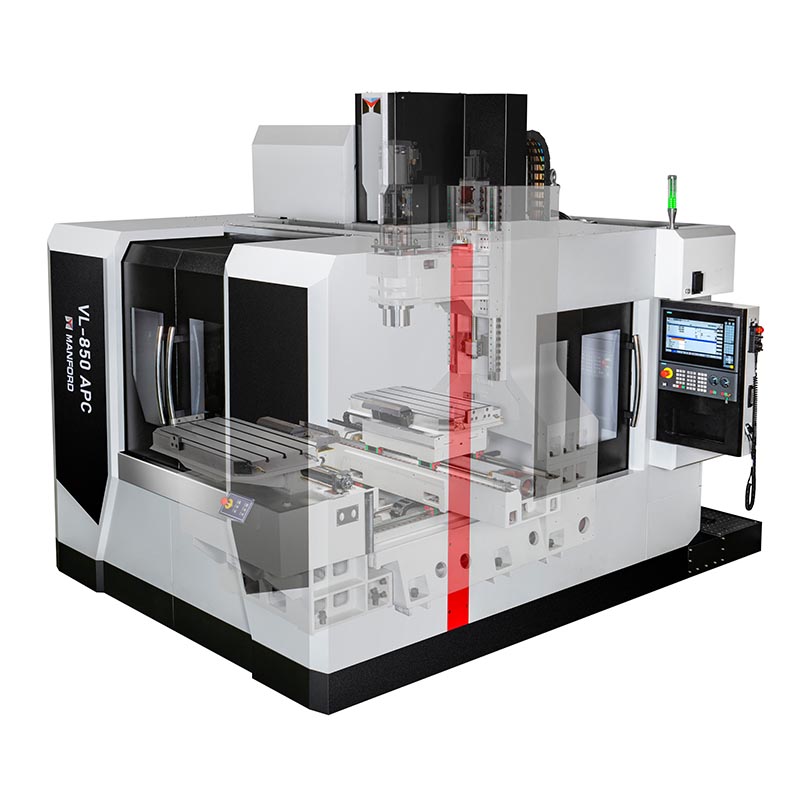

VL-850 (APC)

Vertical Machining Center


X travel 850 mm (33.5")
Y travel 510 mm (20")
Z Travel 560 mm (22")
Spindle nose to table surface 150~750 mm

Table Size

1000x500 mm

T-slot (Q'ty x Size x Dist)

5x18x100 mm

Table Load Capacity

800 kgs
Spindle Taper


Spindle Speed 8000rpm (opt.10000~15000 rpm)
Dimensions 3490x 2085x 2806 mm
Machine Weight 5000 kgs

* Spinlde motor power depends on motor selection

* Positioning accuracy: ±0.005/300mm

* Repeating accuracy: 0.003/300mm

The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performance of the machine. Specifications are subject to change without notice.
