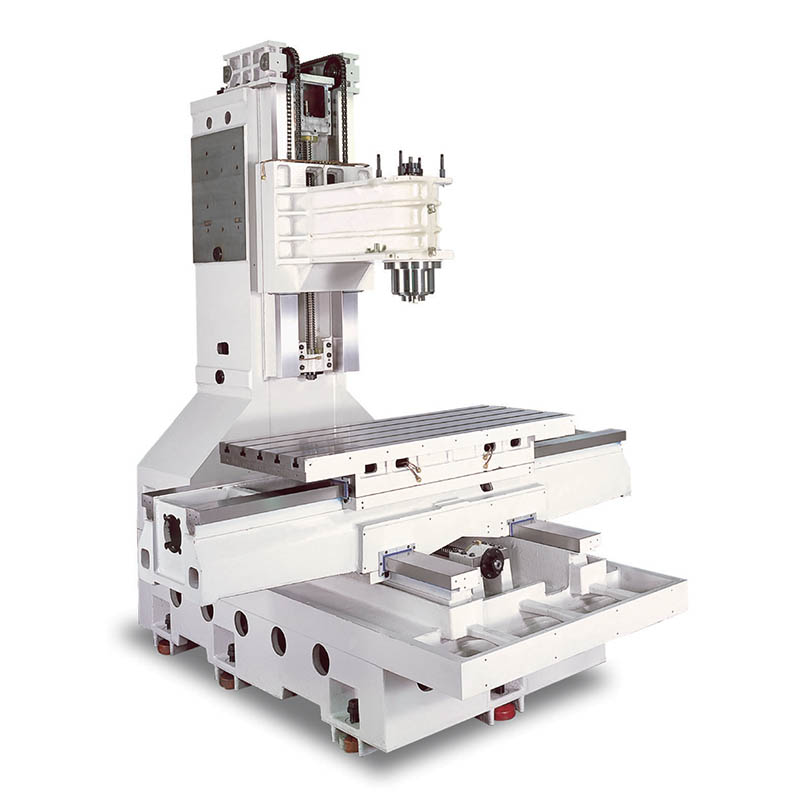

VH-850/1000

inquiry
inquiry

Specification

MACHINE MODEL VH-850 VH-1000
X TRAVEL 850 mm (40.2") 1020 mm (40.2")
Y TRAVEL 510 mm (20")
Z TRAVEL 560 mm (22")
Spindle Nose to Table Surface 130~690 mm
Table size 1000x500 mm(39.3''x19.6") 1200x500 mm(47.2''x19.6")
T-Slot 5x18x100 mm
Max Table Load 750 kgs
Spindle Transmission Belt type/ Direct type
Spindle taper BT40
Spindle Speed 8000rpm (opt. 15000rpm)
ATC Capacity

24 tools (opt. 30 tools)

CNC Control  Mitsubishi / Fanuc / Siemens / Heidenhain / Fagor
Spindle Motor 7.5/11kw
Rapid Feedrate (XYZ) 24/24/16M/min
Dimensions 3650x 2989x 2789 mm
Machine Weight 5000 kgs 5200 kgs
