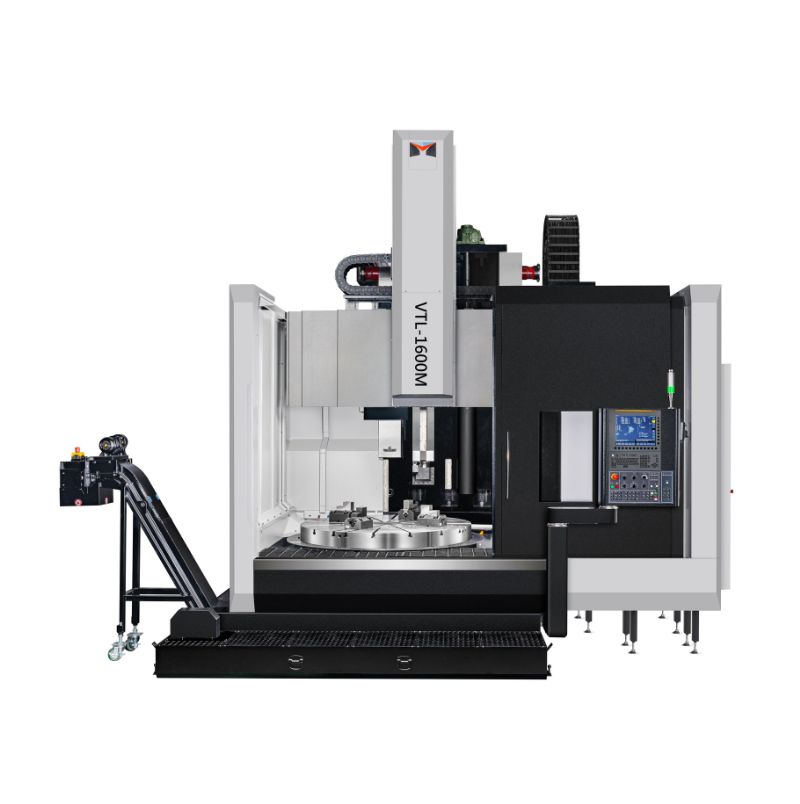

| MACHINE MODEL | VTL-1600M |
| Capacity | |
| Max. swing（Table） | ψ2000 |
| Max. working dia | ψ1800 |
| Max. turning length | 1300 mm |
| Table loading | 8000 kg |
| Spindle | |
| Nose spec. | BT -50 |
| Transmission method | Gear box |
| Max. turning speed(2 steps) |
Low: 1 ~ 63rpm High:63 ~ 250 rpm |
| Chuck | ψ1600(4-Jaw) |
| C axis feedrate | 4m/min |
| 2nd spindle speed | 2400rpm |
| Travel | |
| X axis travel | -100 ~ + 1100 mm |
| Z axis travel | 900 mm |
| W axis travel | 800mm |
| ATC | |
| Tool Magazine | Armless |
| Tool capacity | 16 pcs |
| Max. tool length | 380 mm |
| Motor | |
| Main spindle | 37/45kw |
| C axis | 7kw |
| 2nd spindle | 7.5/11kw |
| Dimension | |
| Dimension | 4280*4690*5510mm |
| Weight | 28000kg |
Note: Specifications are subject to change without further notice.
